BXBstudio designs Polish Farmhouse with interlocked structures

Poland Architecture News - Feb 12, 2019 - 06:00   14466 views

BXBstudio designs Polish Farmhouse with interlocked structures

Polish architecture firm BXBstudio Boguslaw Barnas has unveiled design for the new Polish Farmhouse which oversees the transformation of the old barns into new buildings that will serve for different functions.

The new Polish Farmhouse are designed as both, modern and routed in tradition. Currently under construction Poland, the project will also transform the old barns with new contemporary language.

BXBstudio designs Polish Farmhouse with interlocked structures

"This combination allows us to create interesting design shapes like "The Polish Farmhouse", where in the place of five outbuildings we designed five ”Polish Barns”, and these barns create an interesting space," said the studio.

On one side, it creates a courtyard together with an existing, historical house, over 100 years old, and on the opposite side these barns open up onto a beautiful landscape. The old house has become a party or hobby place and can serve as a house for guests.

BXBstudio designs Polish Farmhouse with interlocked structures

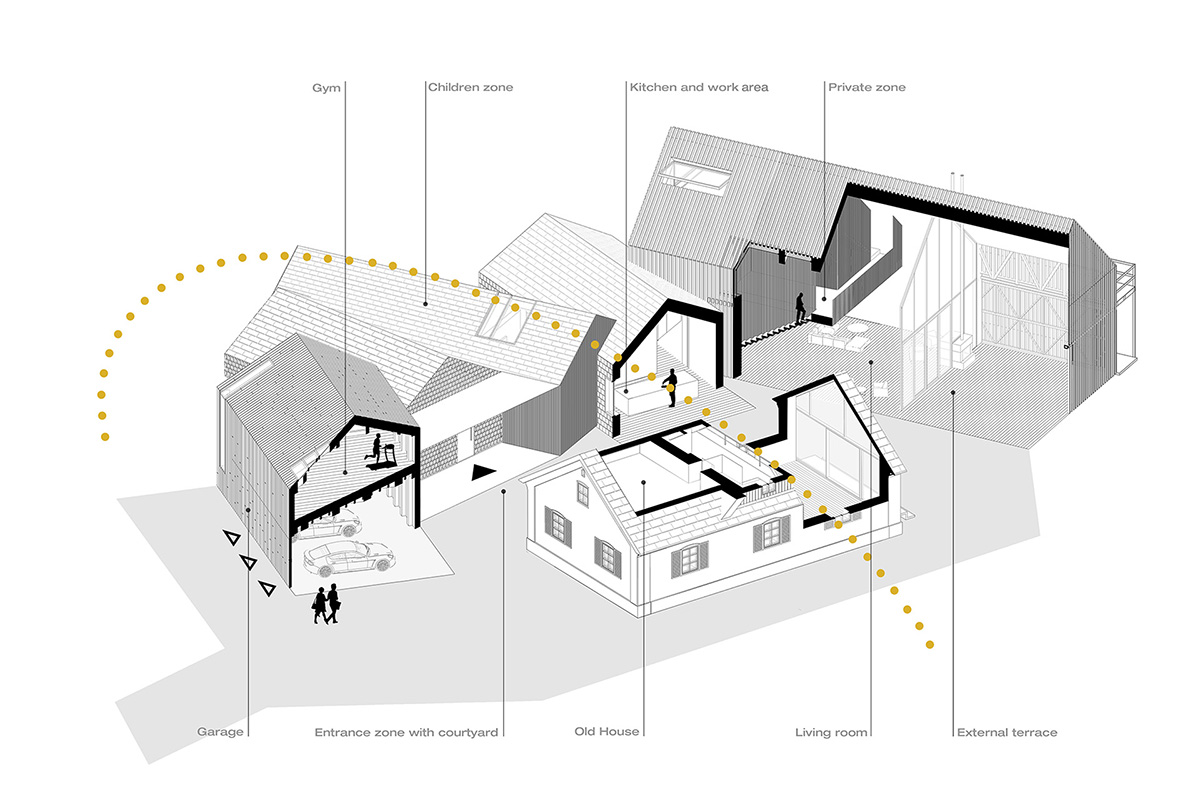

The new family house (Polish Barns) has a unique layout consisting of a garage and a gym on the road side, an entrance space and kitchen on the courtyard side, children and study rooms beside some trees and a pond. At the back of the Farmhouse there is a living area with a private parents space above. The living area is open to the surroundings on all sides.

BXBstudio designs Polish Farmhouse with interlocked structures

The design philosophy with regards to "The Polish Farmhouse” project places great emphasis on the relationship between man and nature with reference to place, history and tradition. This relationship stems from exploring the cultural context, and as well involving contemporary structure and design.

"We believe that this kind of openness with regard to heritage and tradition, allows us to discover a creative richness, full of great creativity, and this kind of creation of space gives our buildings durability and timelessness," added the firm.

"We believe, that in this way, the buildings are not anonymous or unspiritual and that they are something more significant than just modern buildings."

BXBstudio designs Polish Farmhouse with interlocked structures

The newly designed Polish Barns have a unique shape, the form of which results from the reference to the existing farm layout, terrain, view axes, functional needs, division into residential zones and the location of trees that the architects tried to keep. Barn no.1 is located at the entrance to the property and there is a garage with a gym above. We wanted to achieve a stunning effect by using only wood as the construction and finishing material.

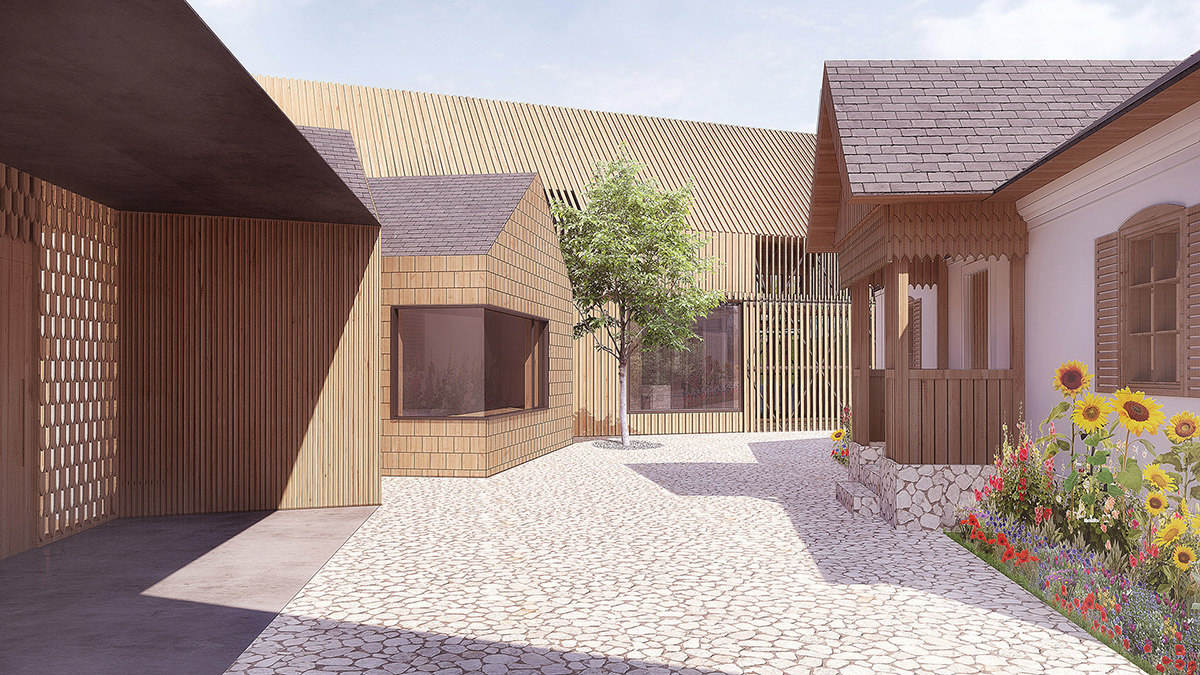

It is a barn that has a scent of wood and creates a new dimension of garage space. It is intended to provide the user with an authentic experience of an adventure consisting of entering a spectacular wooden space of a rural barn. Barn no.2 is the entrance, which opens up with a glass facade to the adjacent courtyard and the Old House opposite. The glass facade has an openwork wooden translucent curtain in front of it, which relates to the original ornamental feature that decorates the entrance of the Old House.

BXBstudio designs Polish Farmhouse with interlocked structures

Barn no.3 is the children's zone and the centrally located main hall. Barn no.4 has a kitchen that opens out to the courtyard and it has two study rooms located on the opposite side facing dense greenery and a pond. Barn no.5 is a two level living space which opens up to the surrounding landscape, courtyard and the covered fireplace terrace.

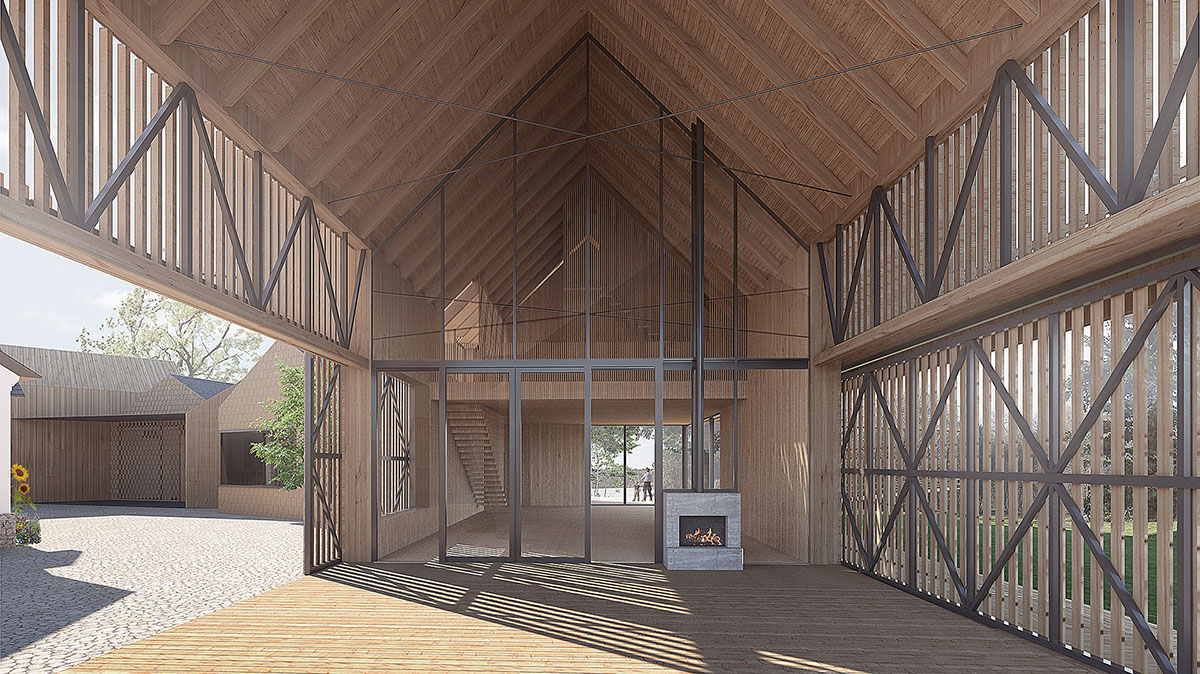

The entire glazed facade of the living room opens out to the openworks structure of a wooden, external terrace equipped with sliding external wall panels. It is an intentional replication of the original dismantled wooden barn which was originally located in this position. On the first floor there is a private bedroom with a pier attached, which leads to lakes and trees. With the attic we have created a small, intimate, private space.

"The Old House regained it’s original beautiful proportions by demolishing all the subsequent annexes. We have enhanced the entrance with a new roof, relating to the original wooden ornamentation of the historic facade. In the interiors of the house we unveiled the original building material - red brick to bring out it’s natural beauty."

BXBstudio designs Polish Farmhouse with interlocked structures

The reconstructed tiled heating stove is displayed in the main, two-level space covered with a wooden roof. What distinguishes this house is the lack of the fourth façade in the traditional manner. The fully glazed wall allows the structure of the house to be exposed to the outside and towards the fireplace terrace of Barn no.5. The Old House is surrounded with colourful plants and flowers characteristic of this type of rural, historical building.

BXBstudio designs Polish Farmhouse with interlocked structures

"The Farmhouse project was created  simultaneously on a piece of paper, with a computer model and a physical model that evolved in our model shop. Thanks to all this, we have fully exercised the possibilities of perception and creation of space. First we created several sketch models depicting possible conceptual variants of building development and the a model of an existing site," continued the architects.

BXBstudio designs Polish Farmhouse with interlocked structures

"Then we created the first working model for the preferred option. The second working model elaborated the adopted solutions and initiated further development directions, including the development of a varied topography."

"The final architectural model allowed us to check the final design solutions and it became the basis for the development of a unique graphic and video animated presentation. This all represented a useful tool for architects and engineers at subsequent stages of technical design development," added the firm.

BXBstudio designs Polish Farmhouse with interlocked structures

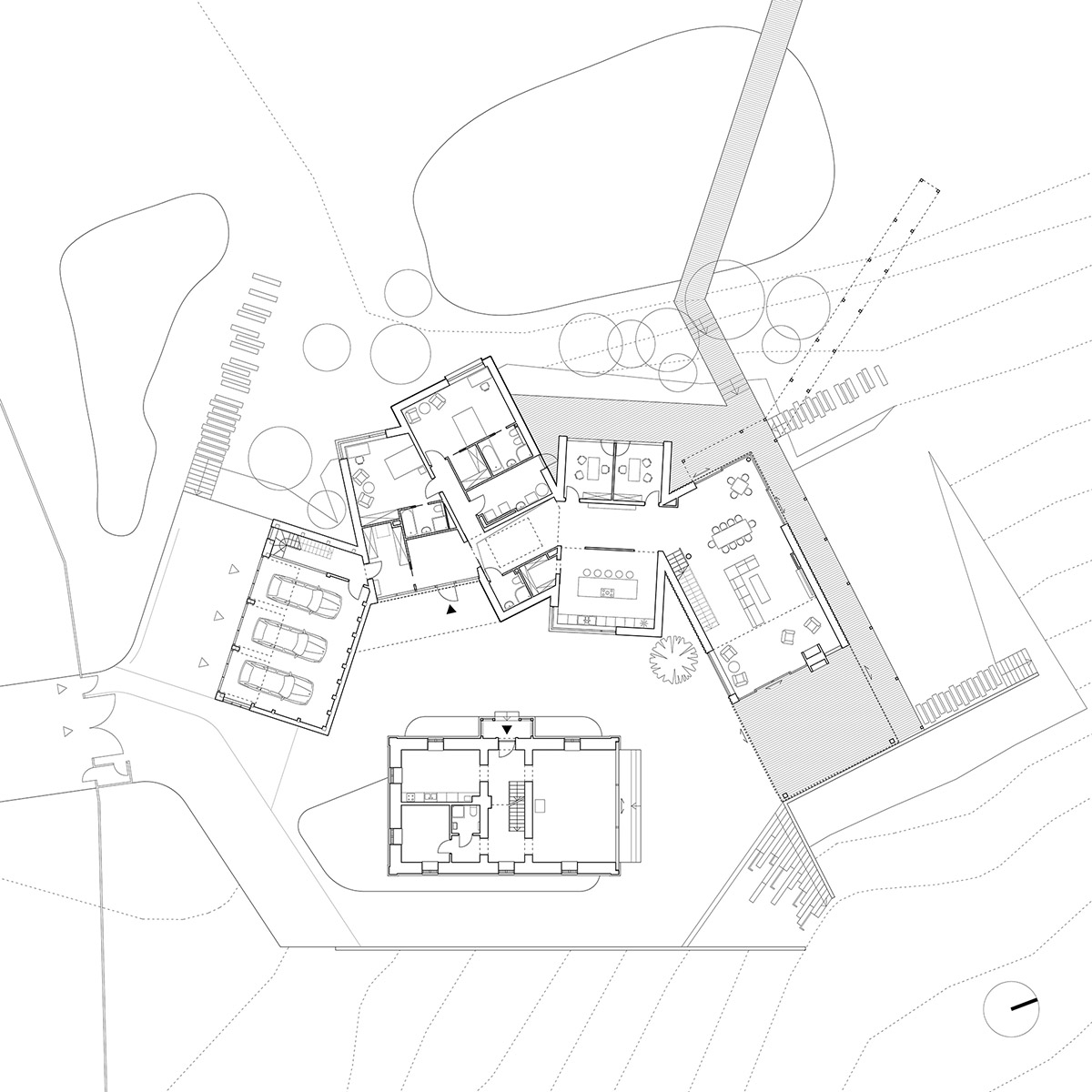

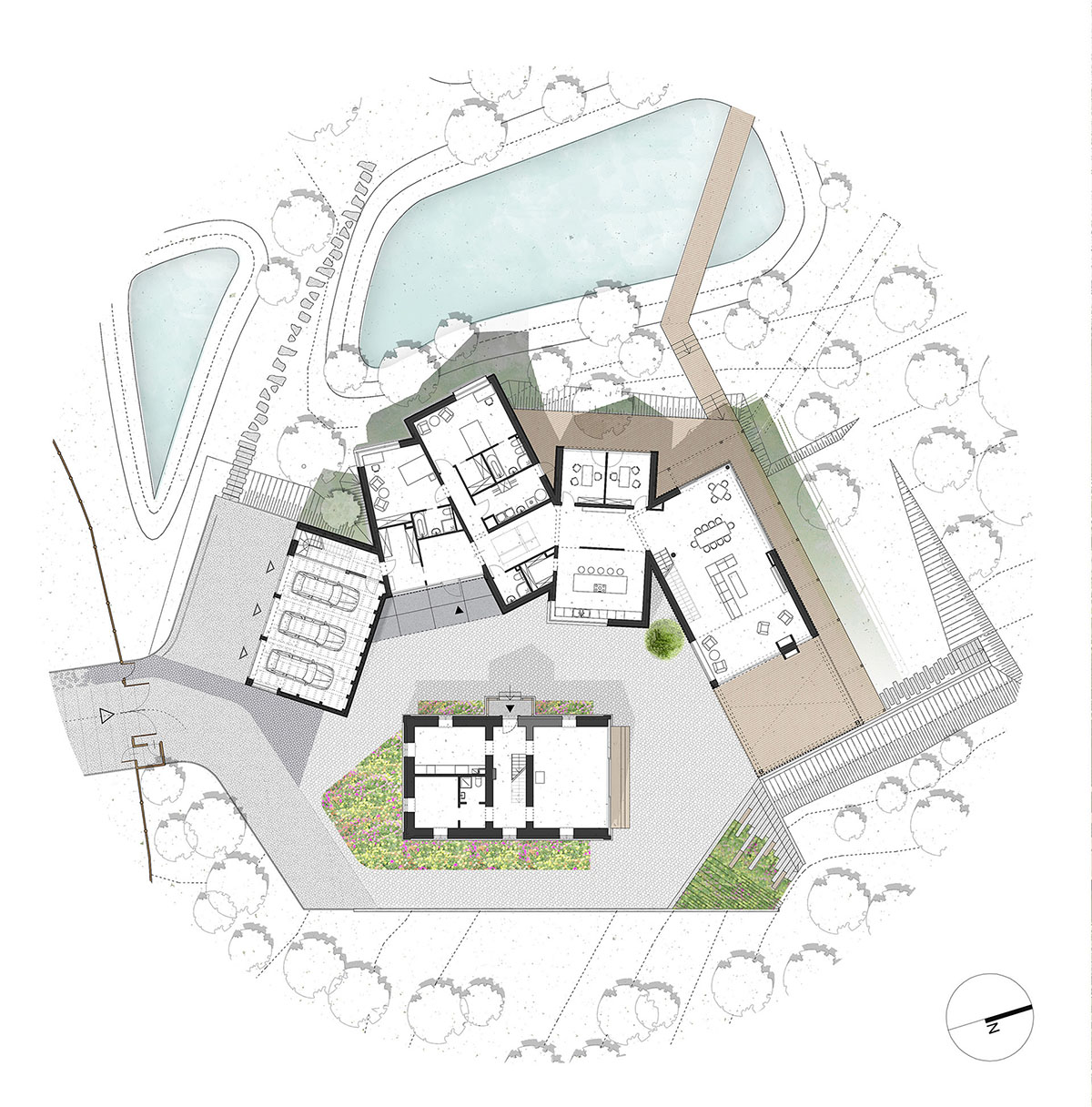

Ground floor plan

BXBstudio designs Polish Farmhouse with interlocked structures

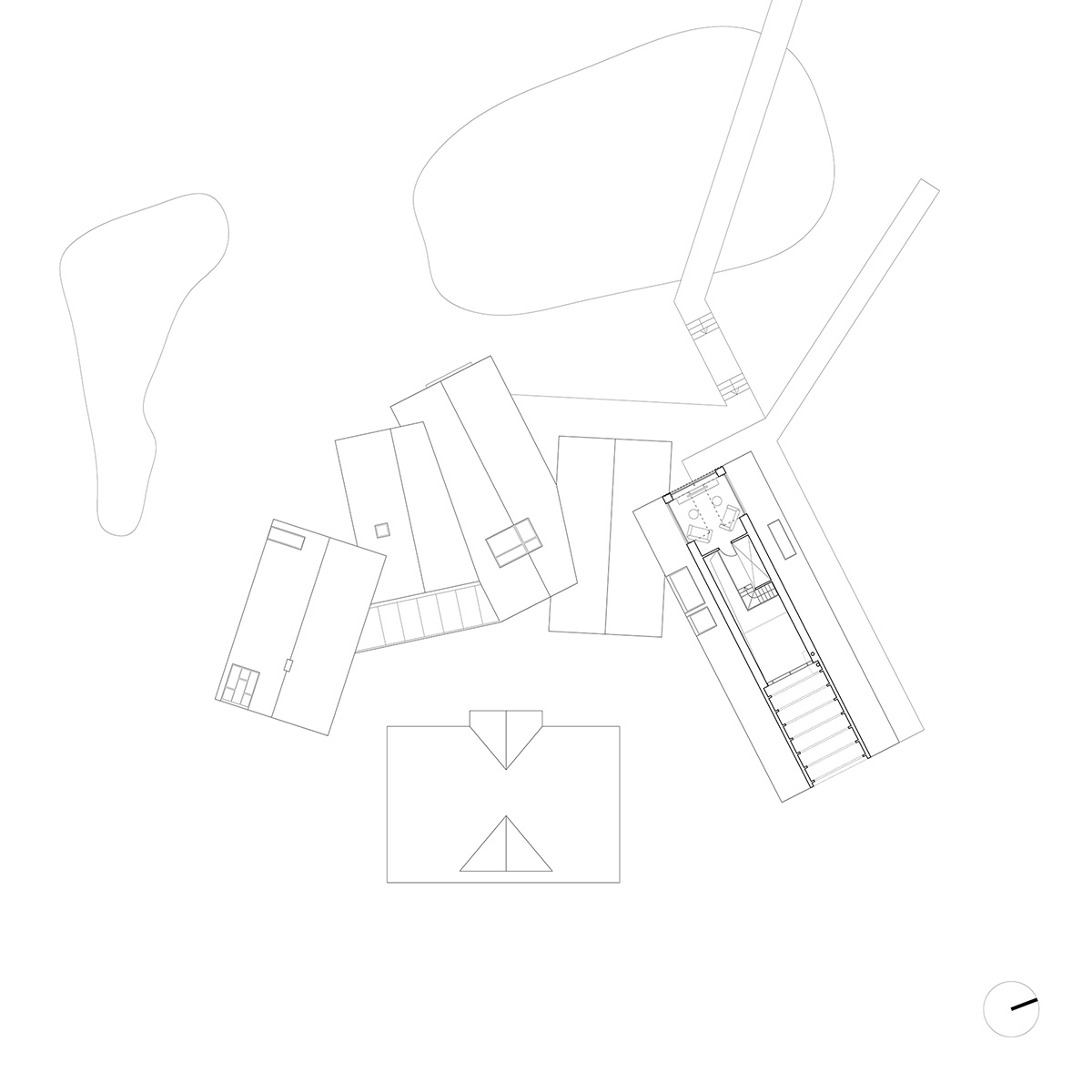

Attic floor plan

BXBstudio designs Polish Farmhouse with interlocked structures

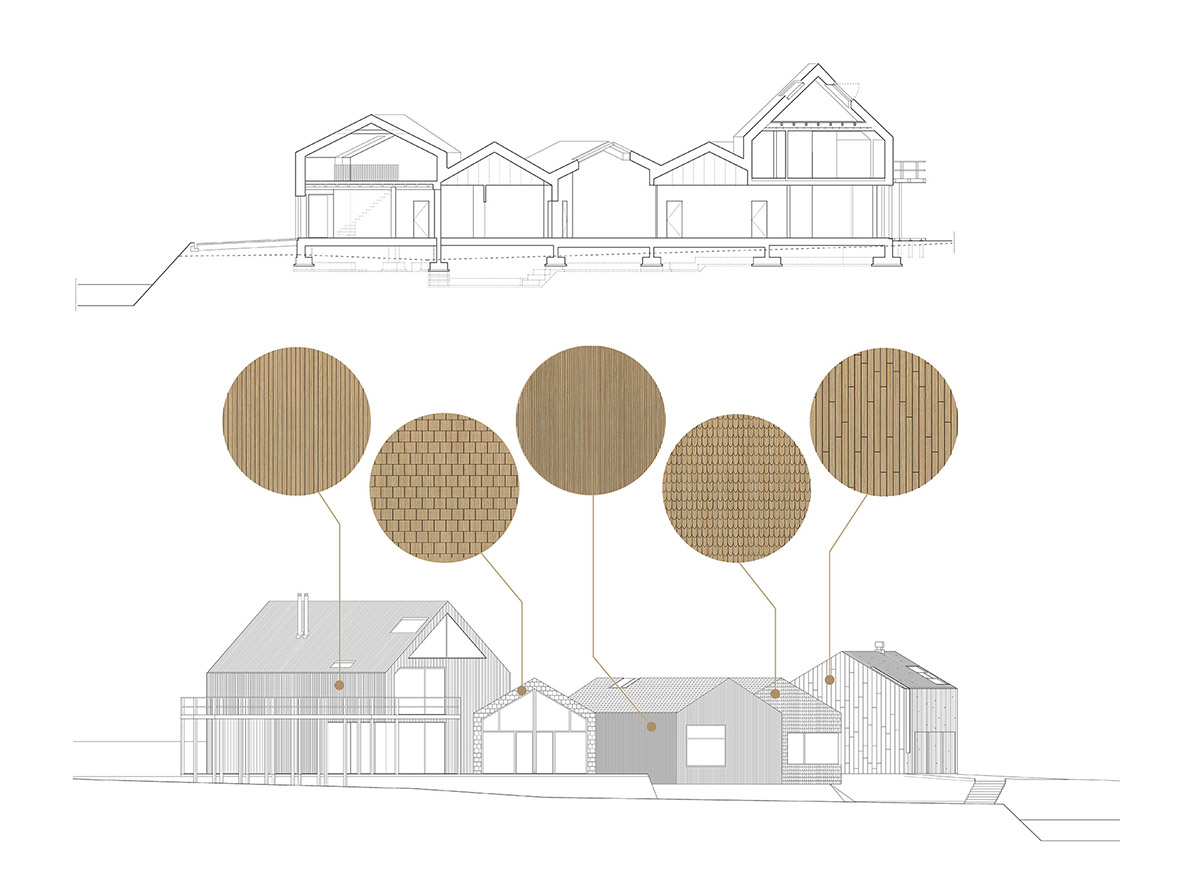

Section and West elevation

BXBstudio designs Polish Farmhouse with interlocked structures

Main entrance and elevation detail

Project facts

Architect: BXBstudio Bogusław Barnaś

Team: Bogusław Barnaś, Mateusz Zima, Justyna Gajda, Bartosz Styrna, Anna Mędrala, Kamil Makowiec, Magdalena Moska, Valentin Lepley, Aleksander De Mott, Maroš Mitro, Paula Wróblewska, MarziaTocca.

Video and animation production and animation graphics: Unique Vision Studio

Visualizations and graphics: BXBstudio Bogusław Barnaś

Area: 627,48 m2

Location: Poland

Date: 2017-2018

Client: Private

Project status: Under construction
