narch creates "architecture of four seasons" in a family house in Barcelona

Spain Architecture News - Dec 28, 2018 - 04:20   16038 views

narch creates

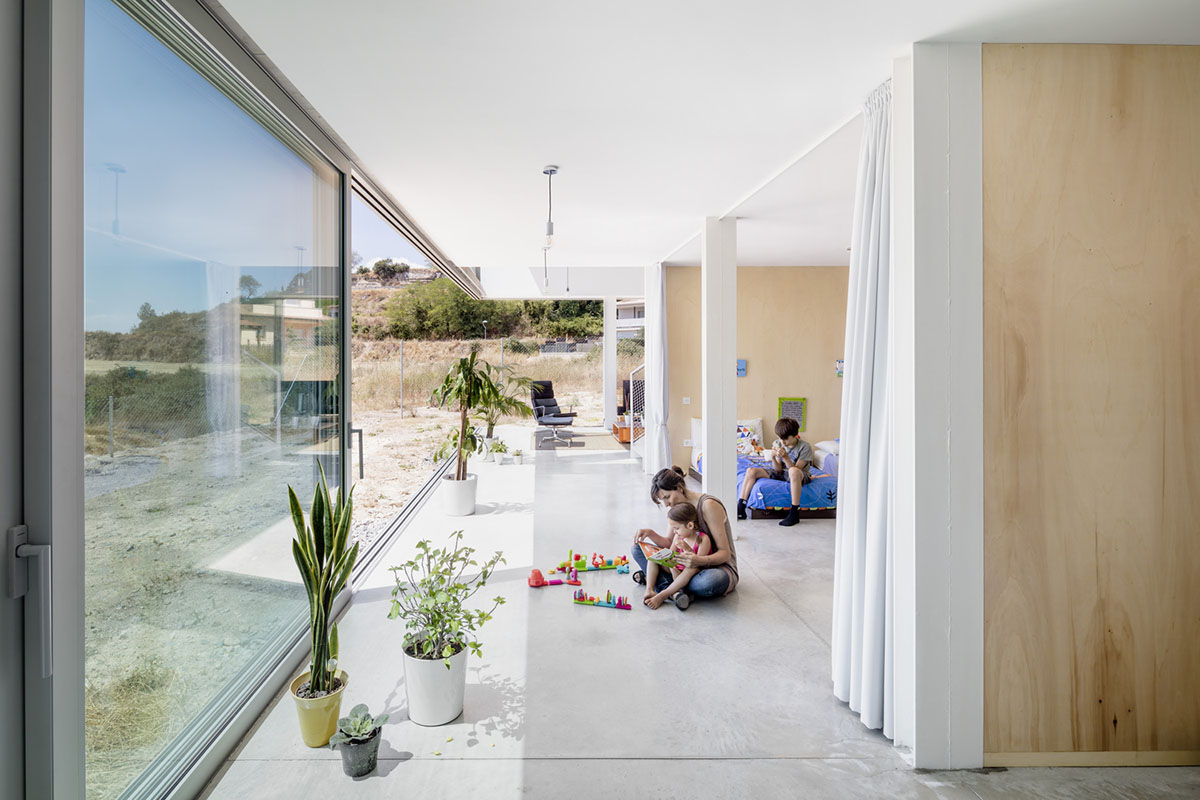

Barcelona-based architecture firm narch has completed a family house in a small village of Calders, offering an "architecture of four seasons" with its slender columns and sliding floor-to-ceiling windows.

Called Calders House, the two-storey house, located in Calders, was designed for a couple who have two children. The 240-square-metre house makes its every corner and space usable for the owners.

narch creates

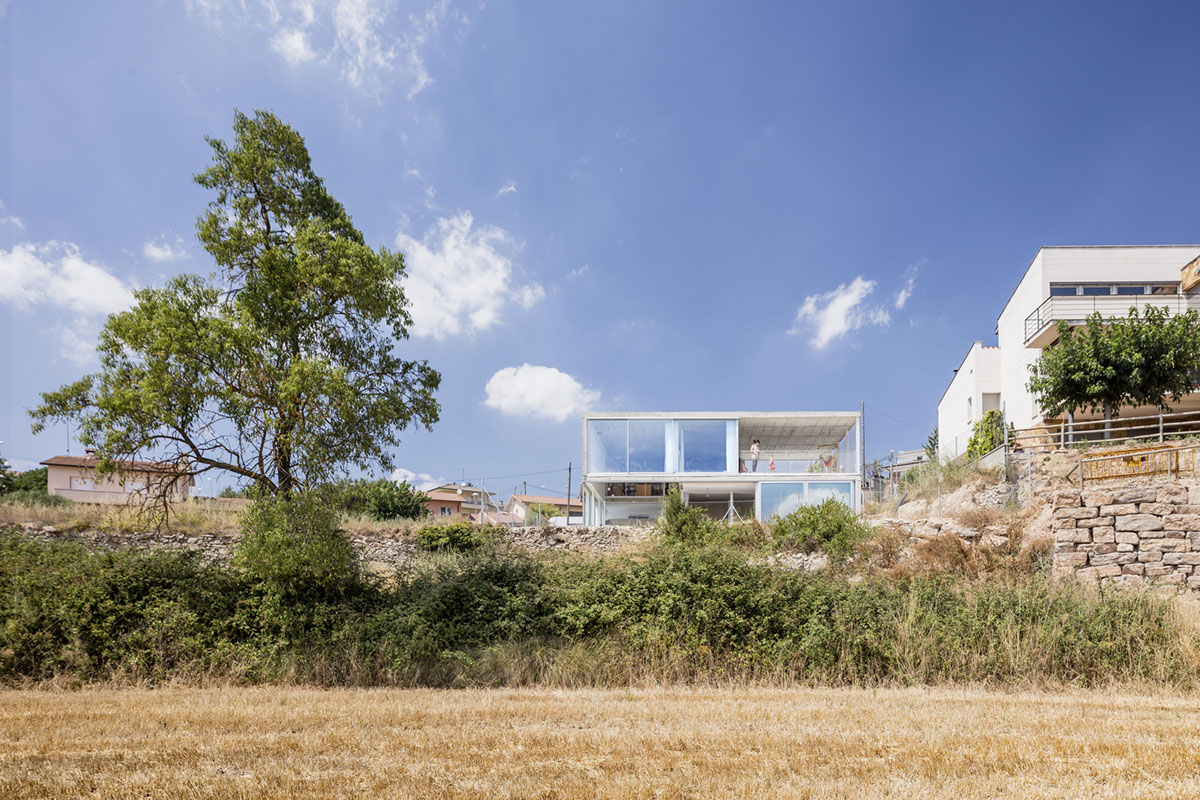

The house is situated on a site at the end of the village overlooking the natural park of “Sant Llorenç del Munt i l´Obac”. The client requested to include an office, common living space, three private rooms, two bathrooms and a garage in the project brief. On this bases, the architects created an open plan for changeable functions through the time.

narch creates

The house is situated on the plot that has a slope of one floor. "All the houses of the neighbourhood have the garage in the ground floor next to the garden and the living space area in the upper floors," said the architects.

"Our decision was to make the opposite. We placed the garage and the studio in the upper floor at the level of the street and the common living area and rooms in the ground floor in order to connect them with the garden."

narch creates

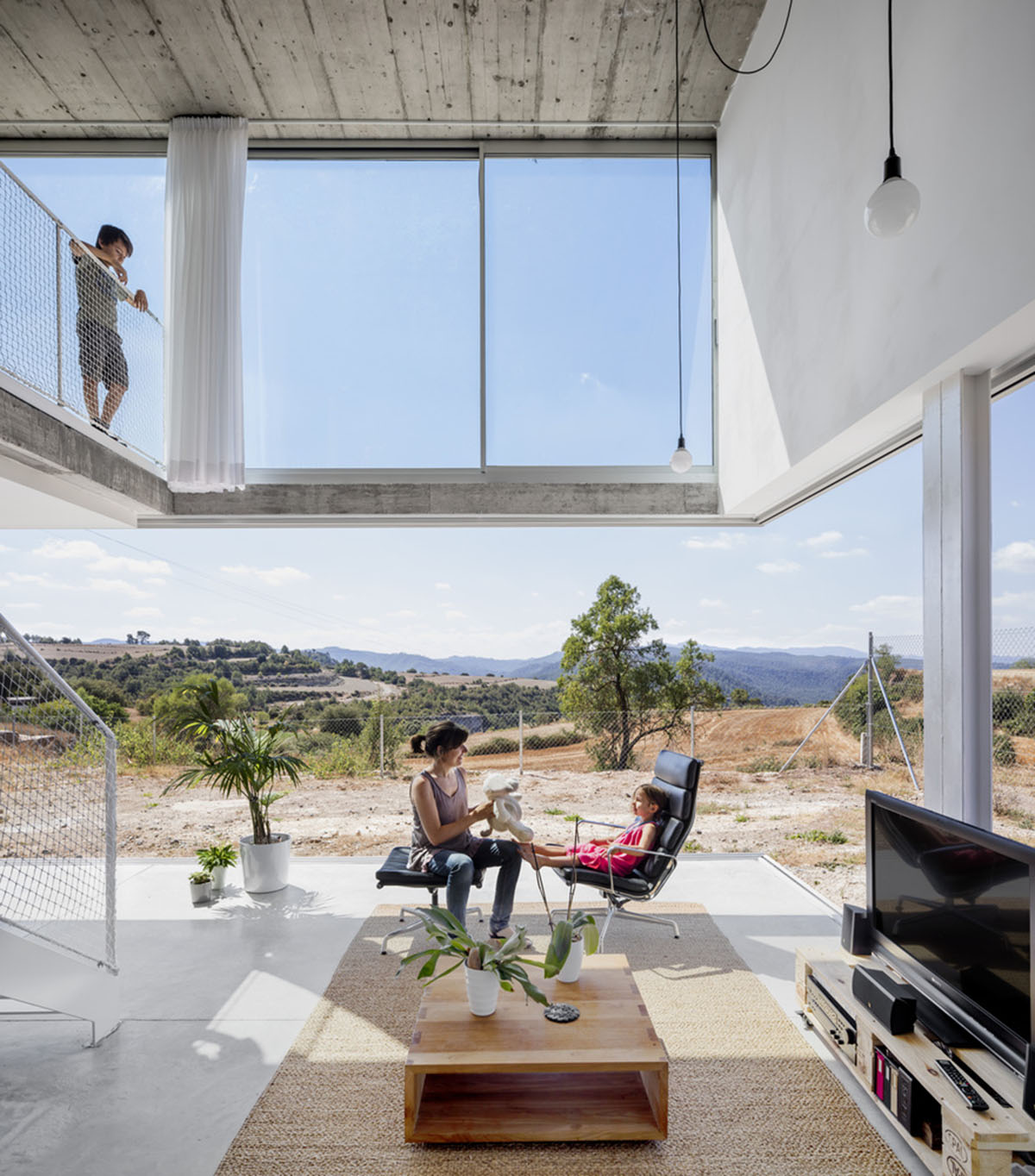

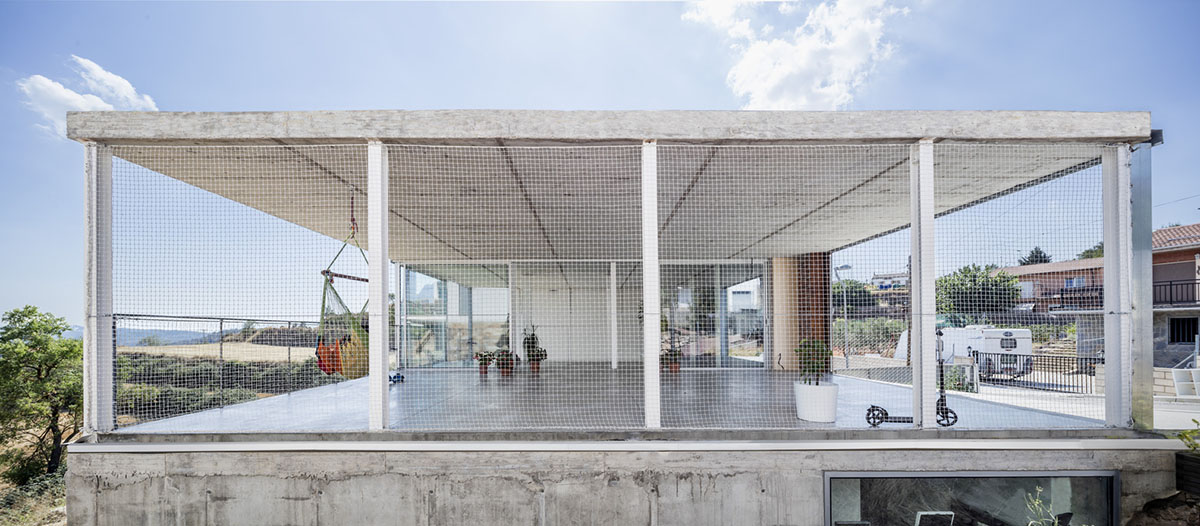

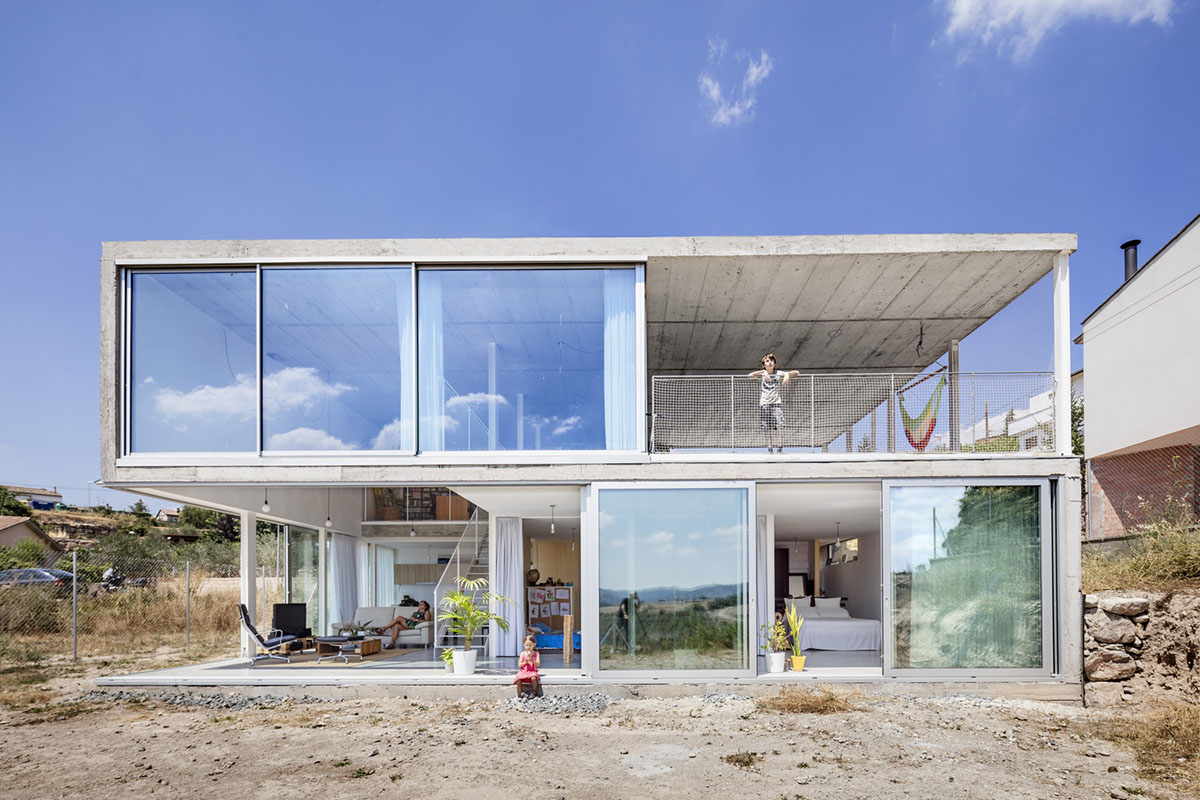

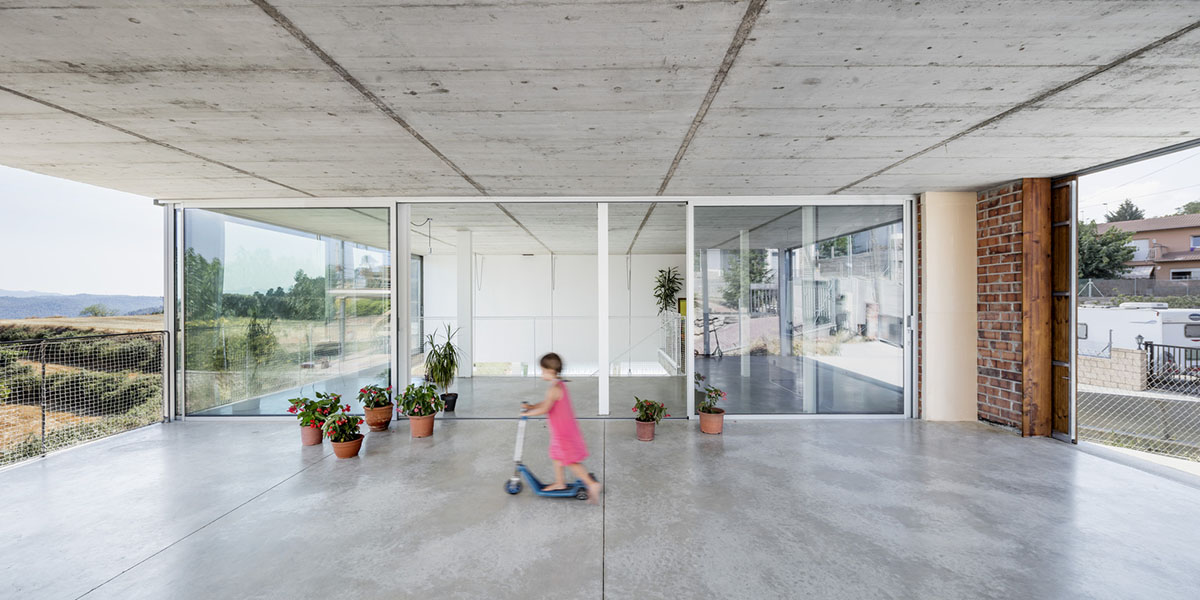

The architects provides the acces through the garage which is used as a garden, a porch, a flexible in-between space. They designed a double-height for the living and dining areas that are opened onto the garden and the natural park.

narch creates

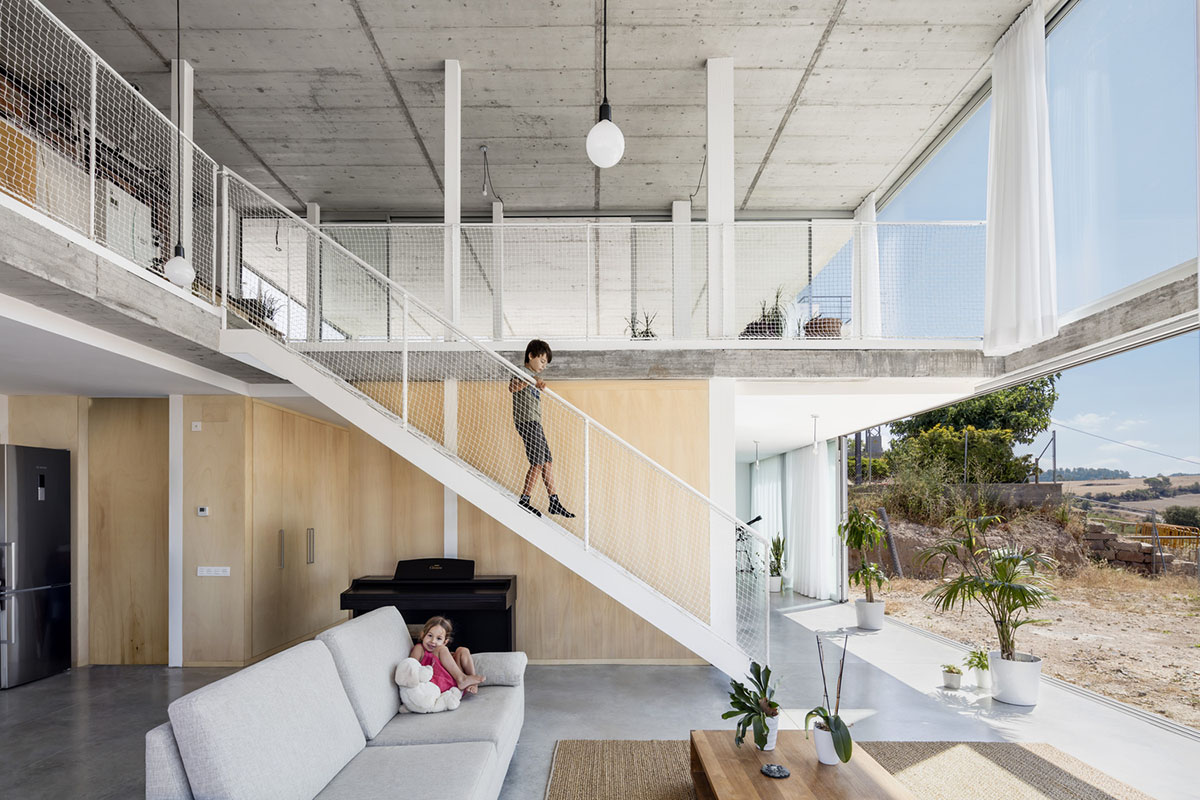

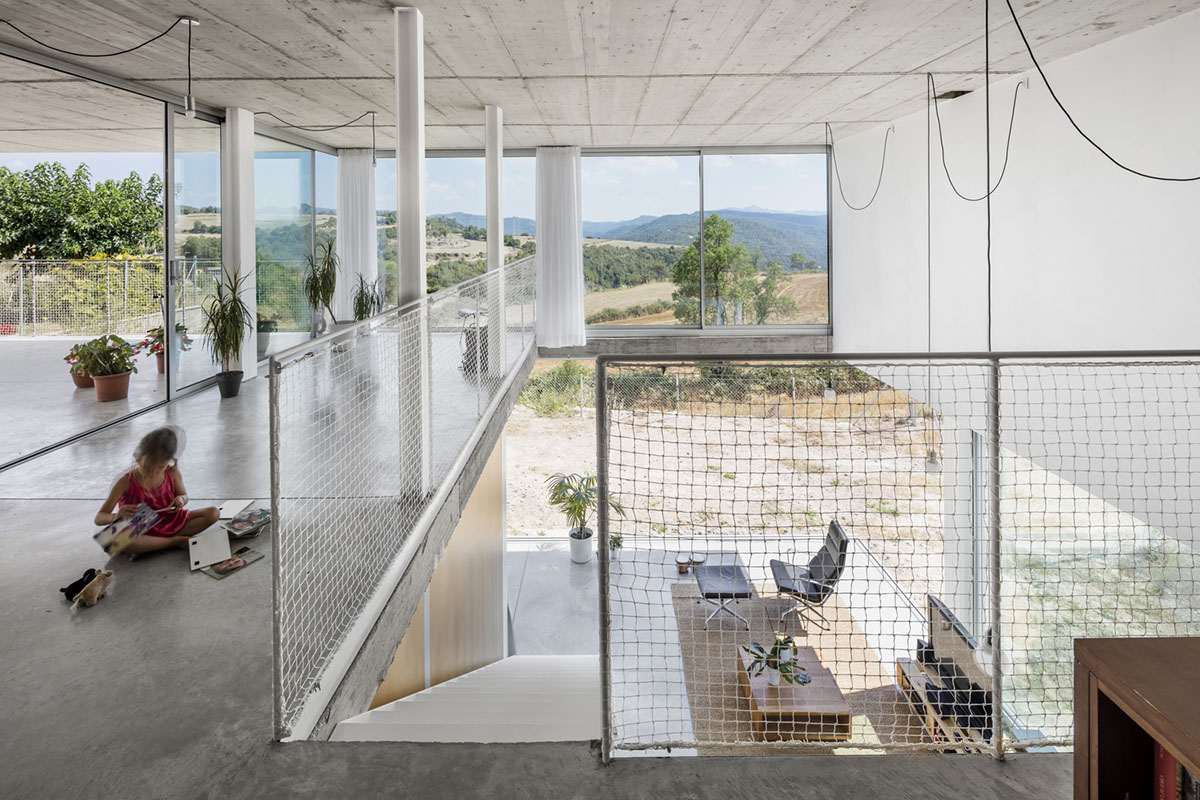

A steel staircase in white match the flooring on the lower level. The staircase is flanked by wires to accentuate the lightweight airy feeling you get from being height up with a view down to the rest of the house.

narch creates

"This is a house with a very small budget but with open-minded clients. We wanted to create "just a roof". The house is a "bay window", designed to draw the eye from even the most breathtaking landscape," added the firm.

narch creates

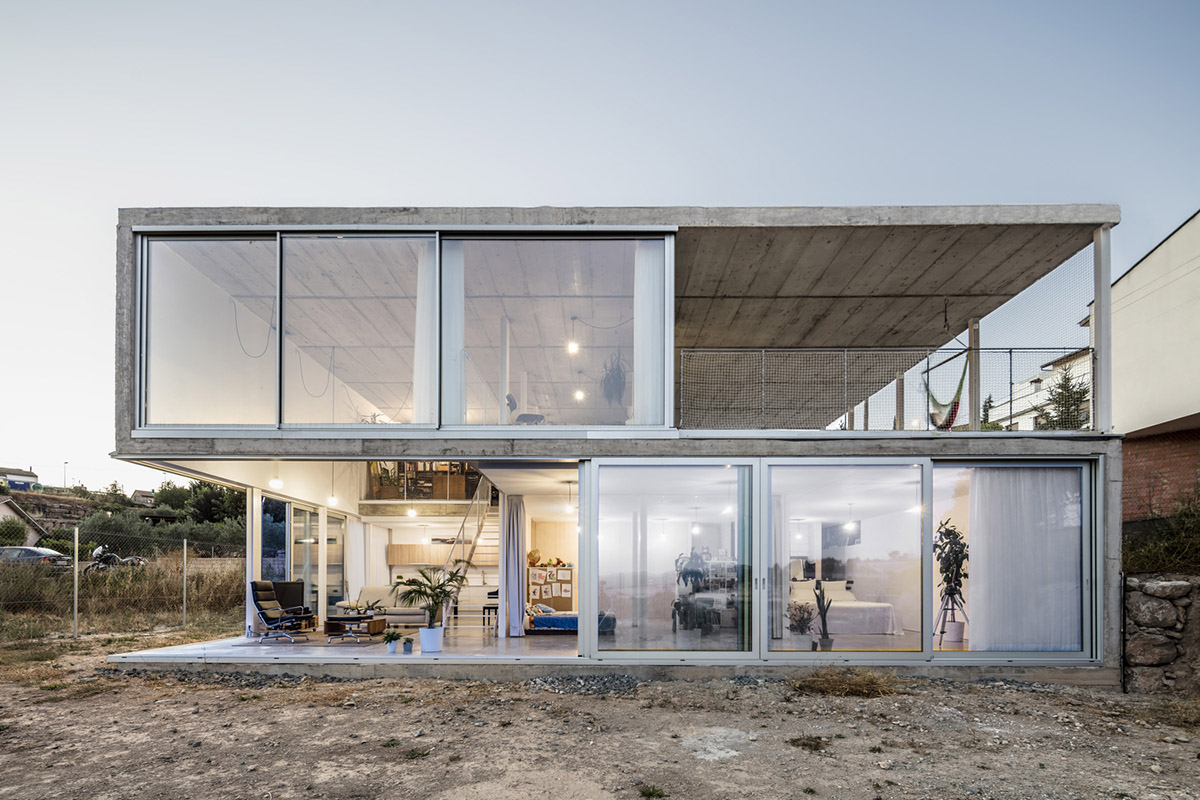

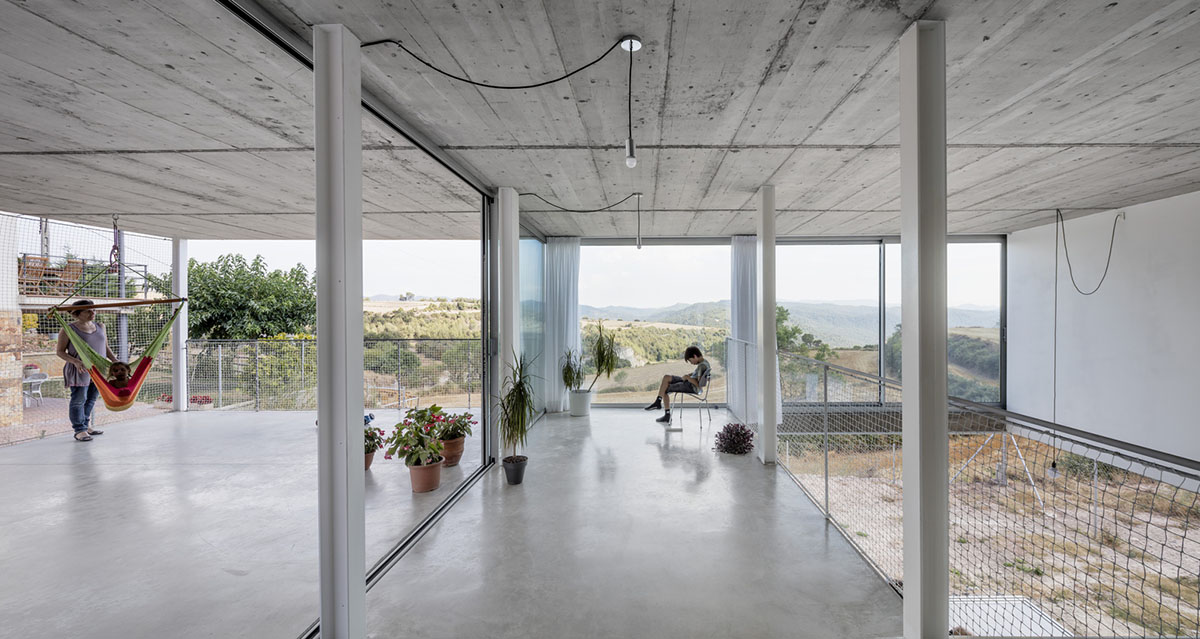

In order to emphasize the natural environment, the architects created a structure of concrete horizontal slabs with columns of steel H-sections of 120mmx120mm to create a building with no walls. The structure defines the form of the house. The building was completed in two years and its overall cost was €215,000 to build.

narch creates

narch creates

narch creates

narch creates

narch creates

narch creates

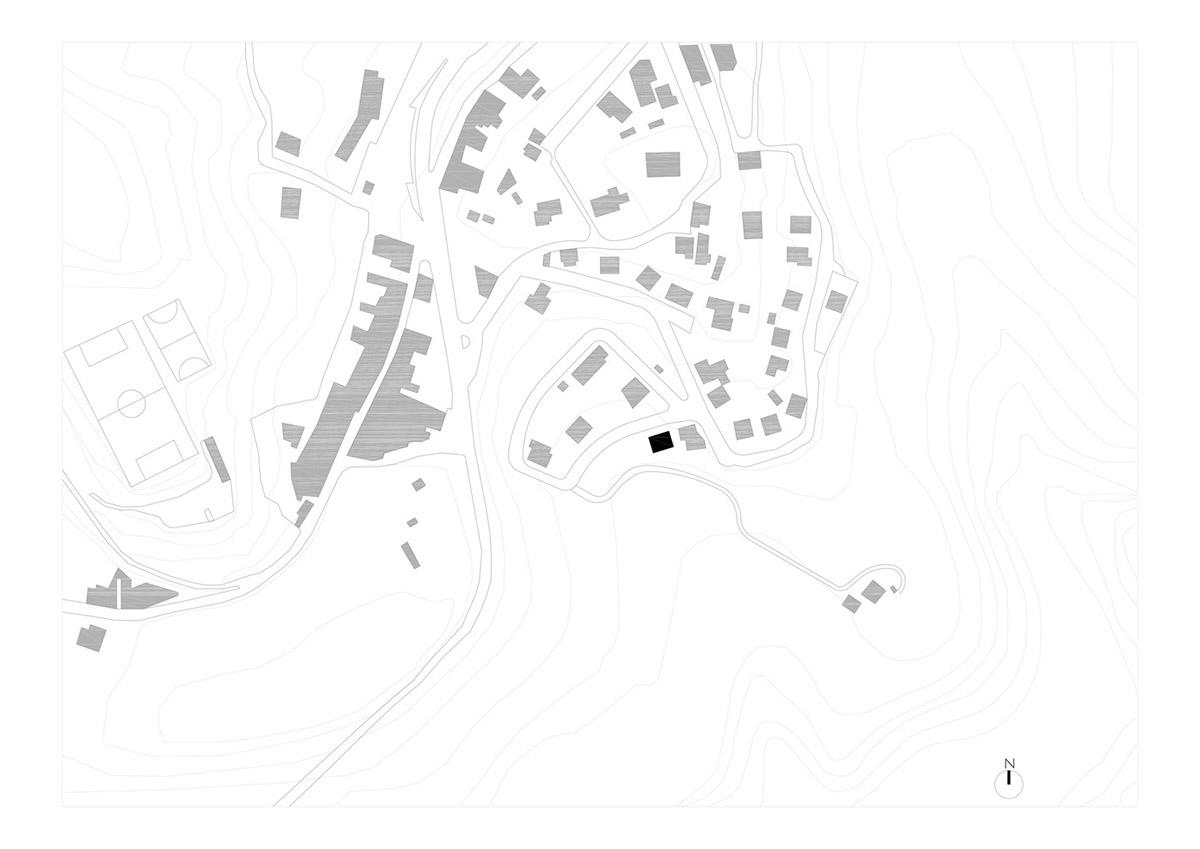

Site plan

narch creates

Ground floor plan

narch creates

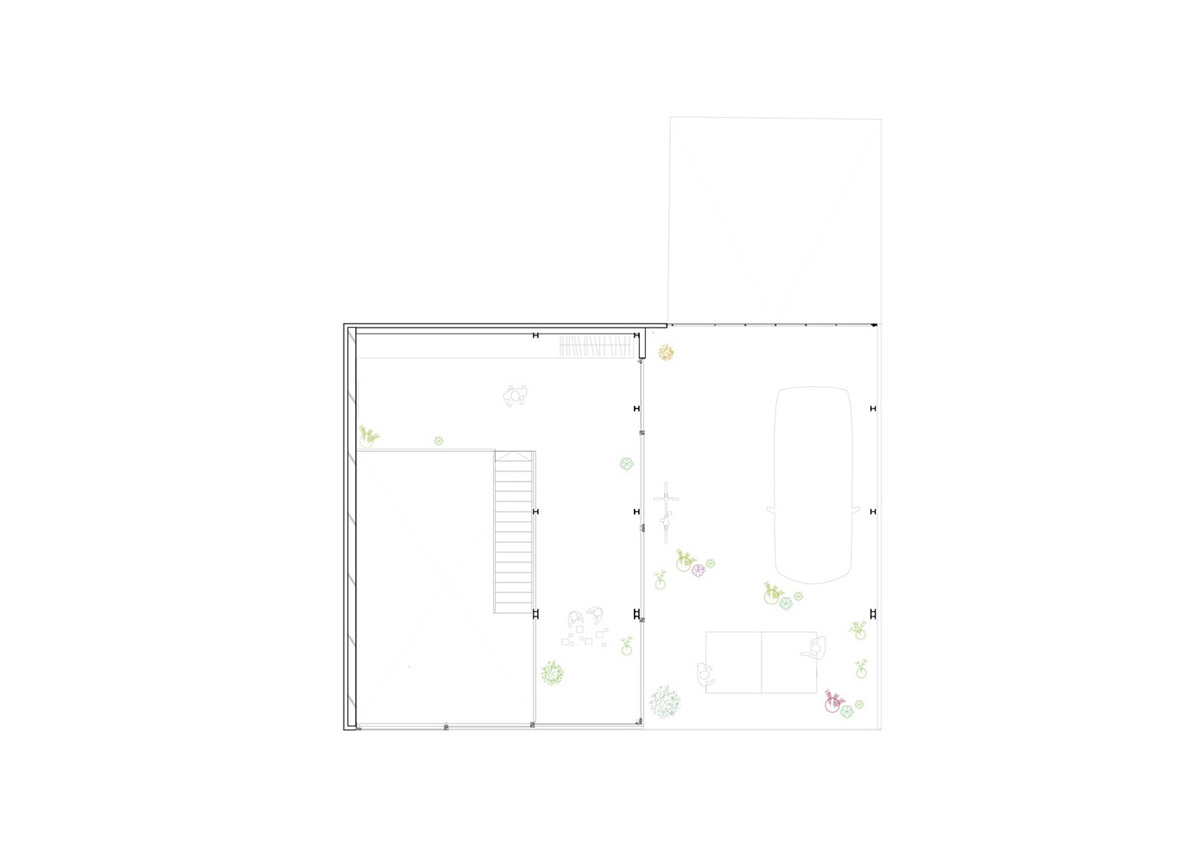

1st floor plan

narch creates

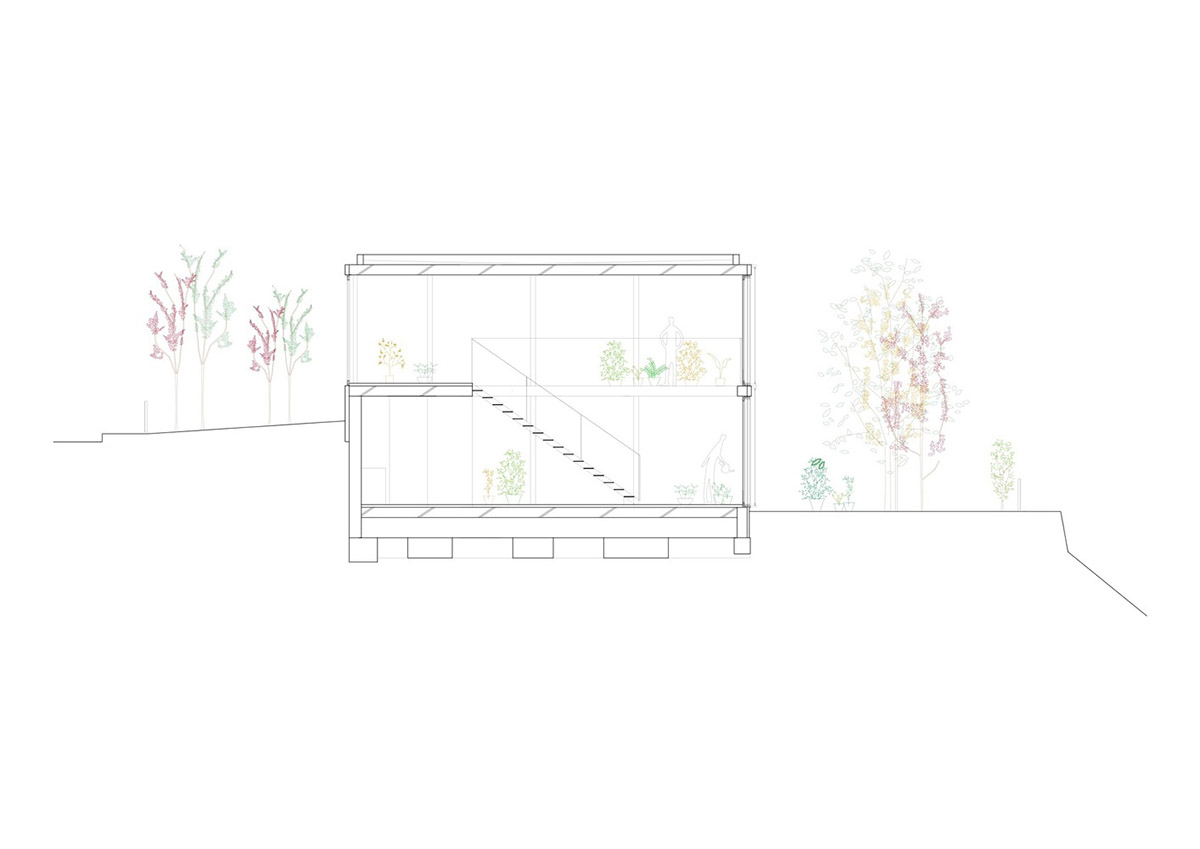

Section

narch creates

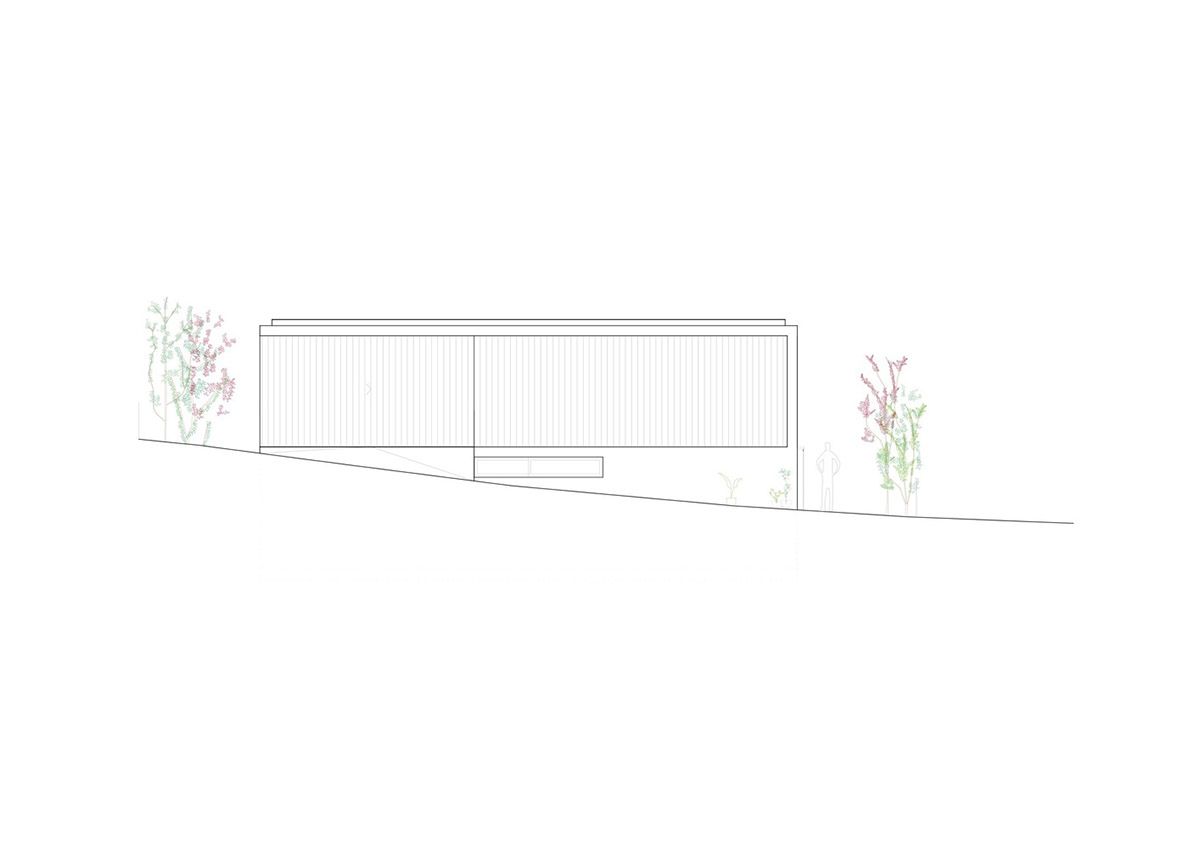

North elevation

narch creates

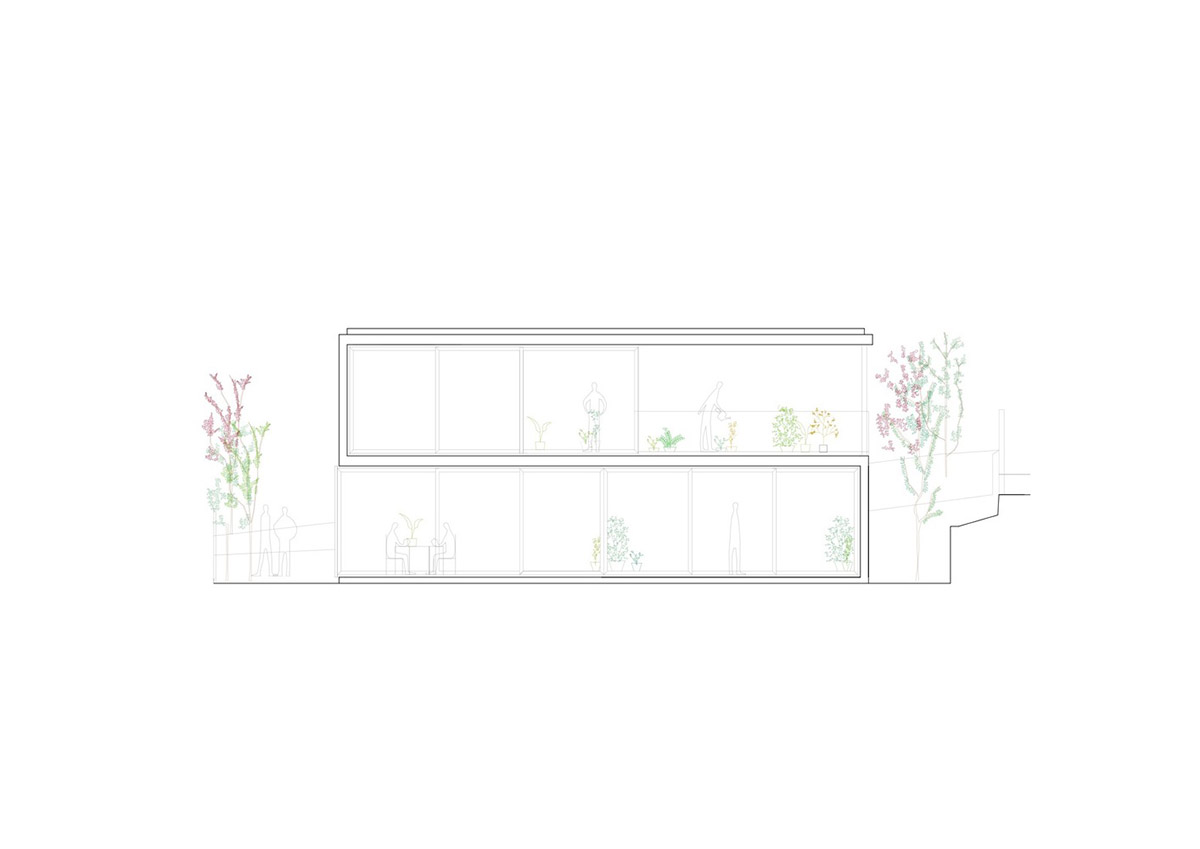

South elevation

Project facts

Project name: Calders House

Location: Calders, Barcelona, spain

Floor area: 240m2

Cost: 215.000€

Architect: Joan Ramon Pascuets / Mònica Mosset

All images © Adrià Goula
