Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

Italy Architecture News - Oct 5, 2020 - 14:39   1421 views

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

Alvisi Kirimoto together with the Andrea Bocelli Foundation and the young Harcome studio have completed the new Camerino Academy of Music in Camerino, Italy, giving the structure a significant contemporary look.

Carried out in compliance with the scheduled timing of only 150 working days, the reconstruction ranks as the third post-2016 earthquake intervention in central Italy, promoted by the Andrea Bocelli Foundation to revive the area, one of the most affected by earthquake events.

The project not only returns the local Academy of Music to Camerino, aimed at welcoming over 160 students and the many cultural initiatives of the community, but also gives the university city a new architectural identity.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

"The beauty of this project is that it is the result of a choral creative process, which saw us collaborate with the young architect Andrea Gianfelici (Harcome), the Andrea Bocelli Foundation and the local community, to create a unique project," said architect Massimo Alvisi.

"The idea that guided the design was to create a volume that amazed, not only up close, but also from afar. The skin, impalpable, is inspired by the material of the clouds, and gives a broad look towards the sky from the inside."

"The auditorium, on the other hand, is a perfect box, which works energetically as a music laboratory," added architect Massimo Alvisi.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

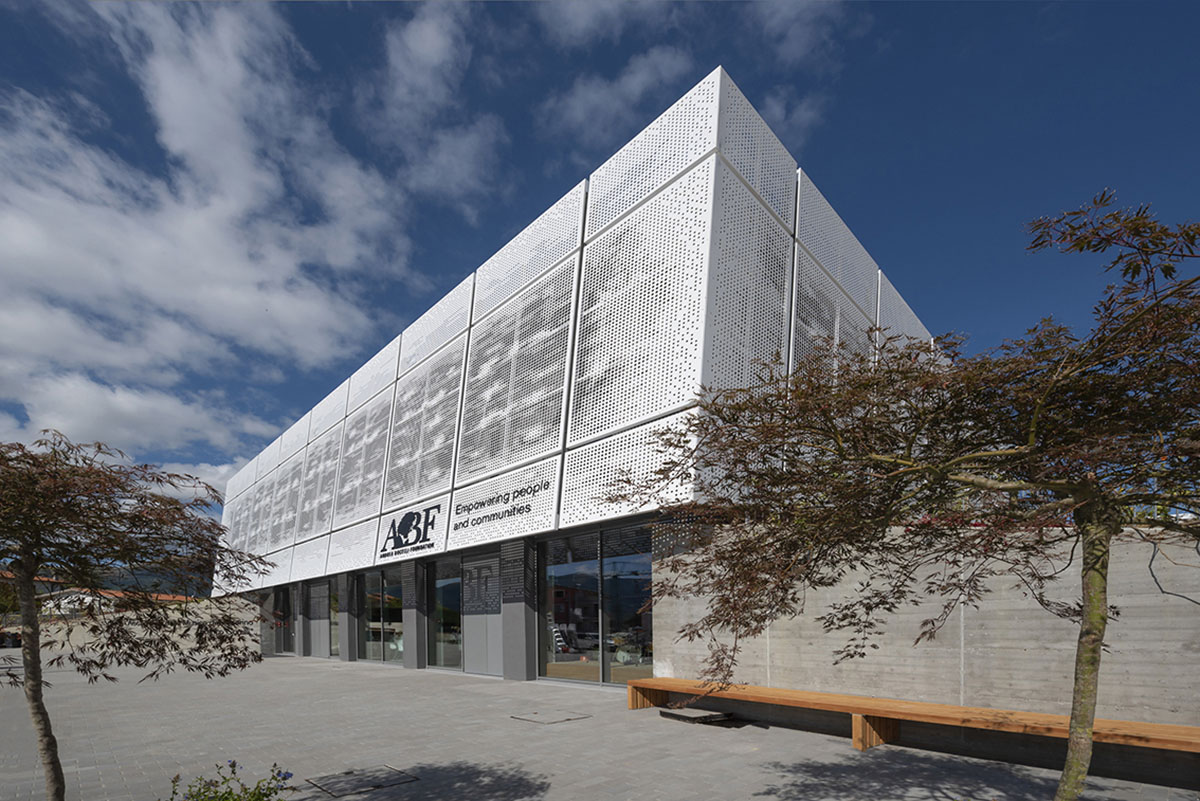

With clean and elegant lines, the building, which is spread over two levels for a total of 700 square metres, stands out for its ethereal skin in white sheet metal panels with perforations of varying size. Inspired by the rarefaction and dynamism of clouds, the inclined volume, lying on the slope of the ground and on a glass curtain marked by grey pillars, dissolves into the context.

The north façade, visible from the street and from the upper garden, presents the volume as a box, with the panels suspended a few tens of centimetres from the ground.

The two side elevations, on the other hand, show the inclination and slope of the land. To the south, the skin that envelops the volume is interrupted, revealing the glazed ground floor behind which the auditorium, overlooking the historic centre of Camerino, is hidden.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

The dichromatism of the façade, offered by the dark grey of the external structure, the fixtures and the white of the sheet metal cladding, outlines a graceful but resolute volume, perfectly integrated into the context and at the same time iconic in the city skyline. A shady garden and the lower square constitute new open spaces available to the whole community.

Inside, the building houses an auditorium of 226 square metres in its basement, while the upper floor hosts an office and nine classrooms, two of which are larger than 30 square metres, one – destined for music for children from 0 to 6 years – is 22 square meters, and the remaining classrooms are around 14 square metres.

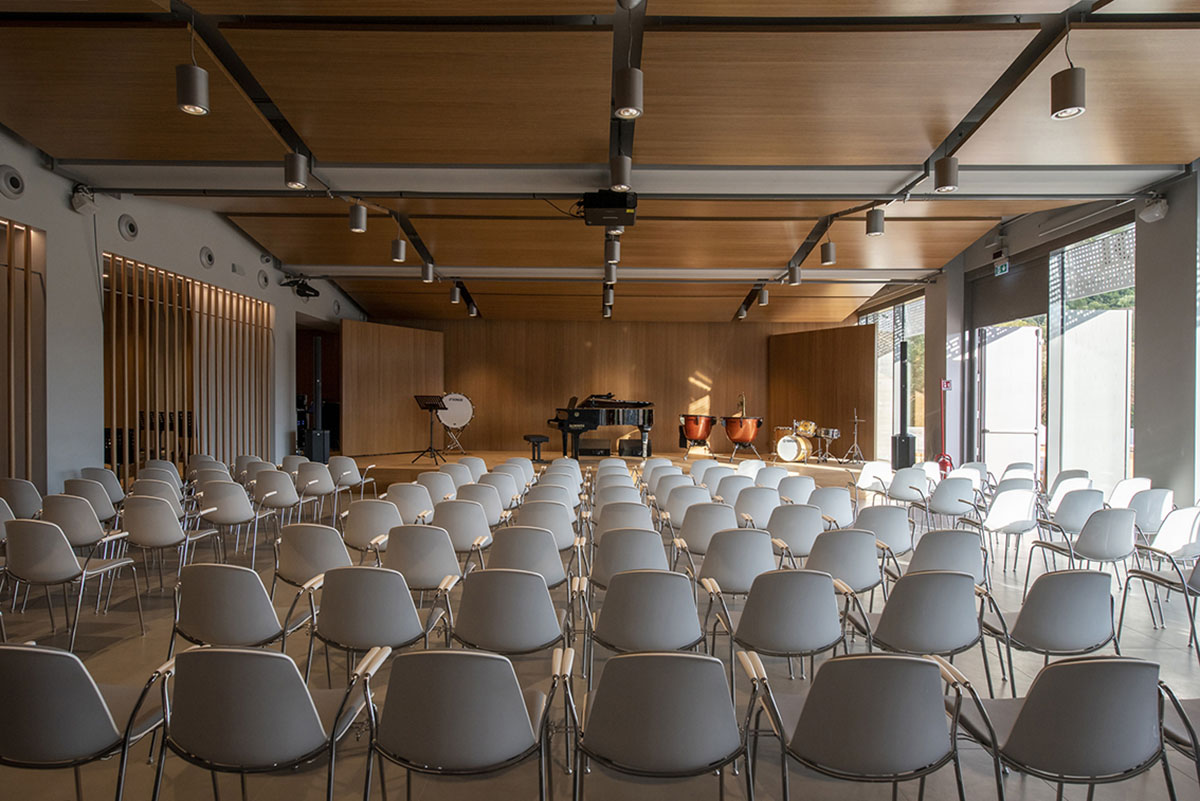

The interior design of the auditorium, aimed at enhancing the space despite its modest size, is characterized by the dynamic use of materials. On the one hand, the oak wood of the multiple surfaces and elements that make up the room, such as the suspended panels with different inclinations, circular strips, panels that emerge from the side wall, and a backdrop entirely covered with wood and the central stage with its rotating panels.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

On the other, concrete, which defines the main surfaces that forge the structure, from the stoneware floor, to the back wall towards the foyer, and from the exposed upper floor to the structural elements. The 180-seat stalls spread over three sectors, while in the lateral area, the artists' path is inserted between the wooden wall panels and the full-height strips, which, like the pipes of an organ, bring rhythm to the space, alternating between full and empty.

The back wall, entirely transparent, connects the auditorium directly with the foyer, expanding the perception of space. In the foyer, rectangular wooden slats stand out from the back wall to the false ceiling, which slopes towards the entrance façade, following the tension defined by the position of the volume created by the external white skin.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

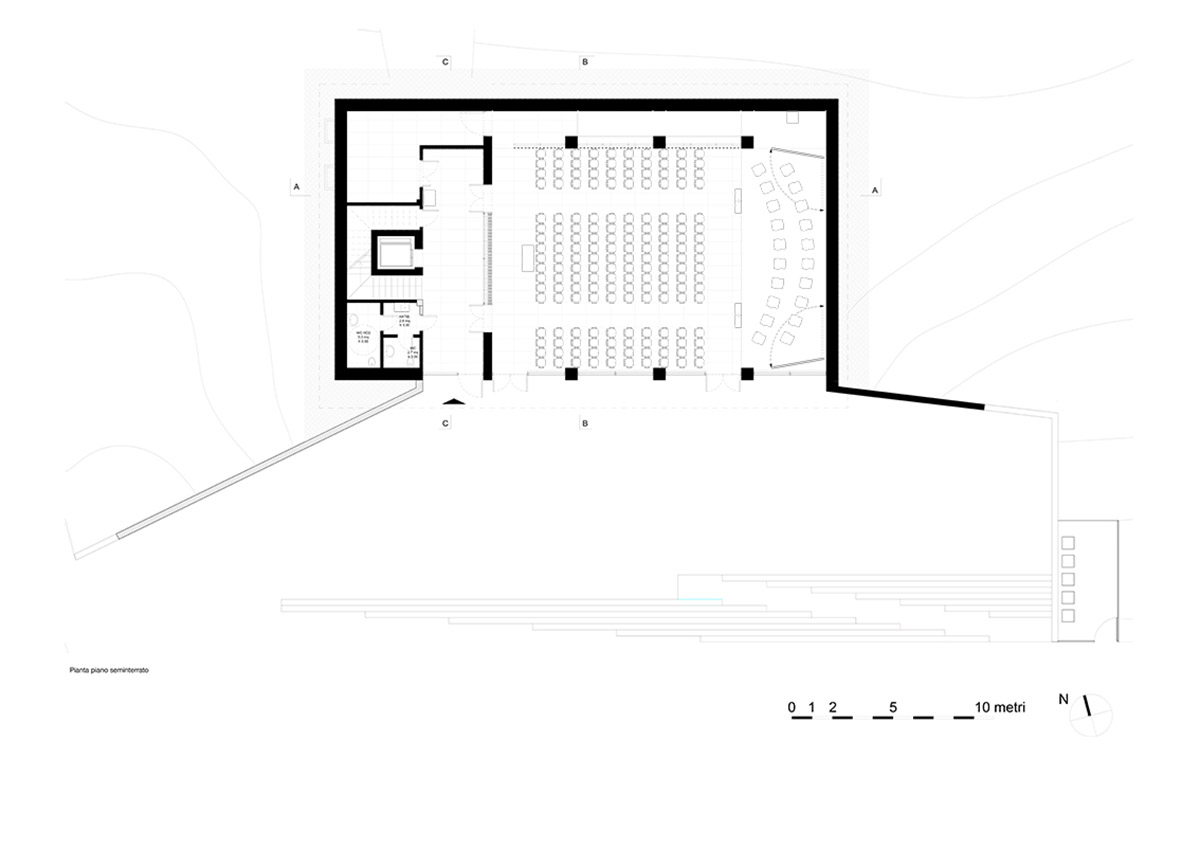

Underground level plan

To connect the building vertically, in addition to the elevator, an orange resin staircase brings great liveliness and energy to the environment. A note of vigorous colour that also expands upstairs, from the floor of the connective space, to the access doors to the classrooms and to one of the walls inside them. In the classrooms, in addition to the necessary furnishings and musical instruments, mirrors and wooden panels invite students to personalize them with scores or musical compositions.

The two larger classrooms at the back house recording studios and electronic music lessons-concerts. In contrast to their counterparts, they are dark grey in colour and have special micro-perforated wooden panels on the walls that optimize their acoustic performance. In all the rooms on the upper floor, the circular windows positioned at two different heights welcome in the light that filters through the multiple perforations of the panels.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

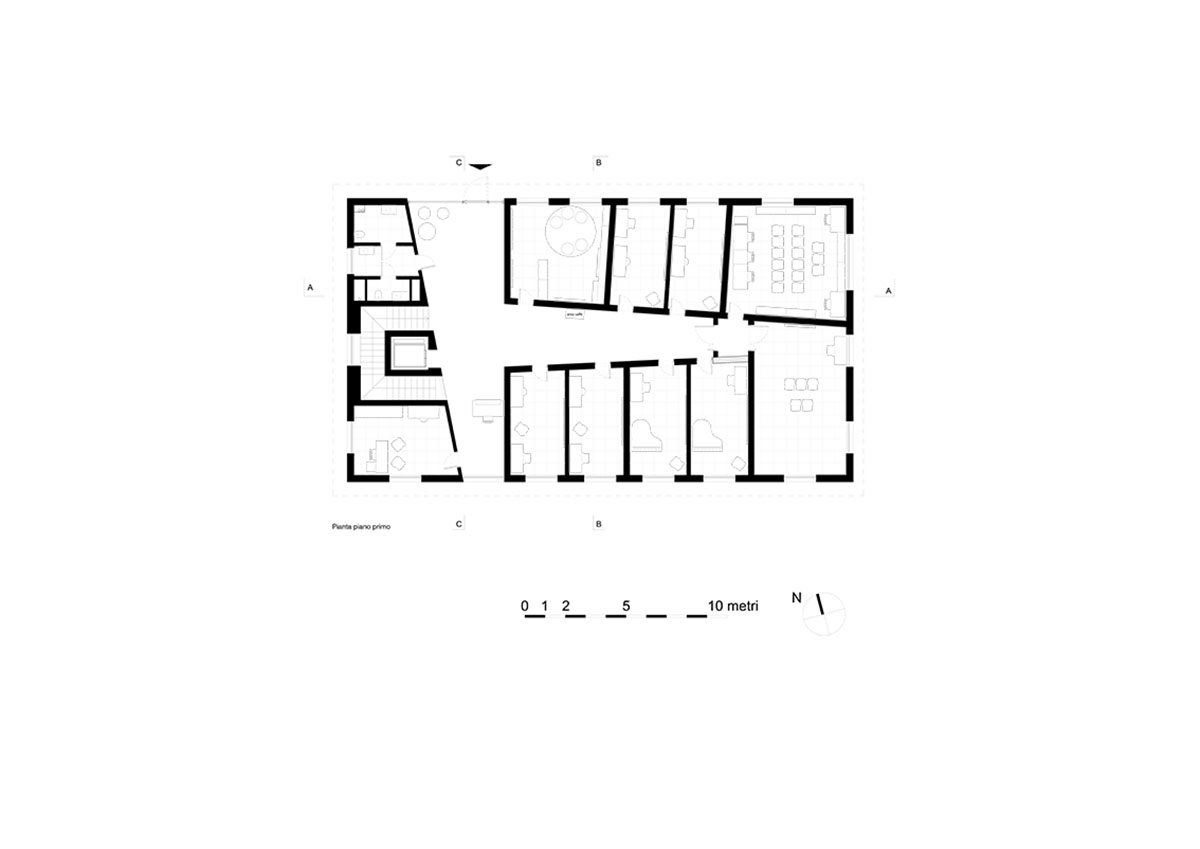

First level plan

Open all year round and ready to host conferences, events, study activities and workshops at the service of the community, the new architecture by Alvisi Kirimoto presents itself as an educational and innovative forge dedicated to music, capable of giving Camerino a role of reference in the cultural panorama of the Marche region and beyond.

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

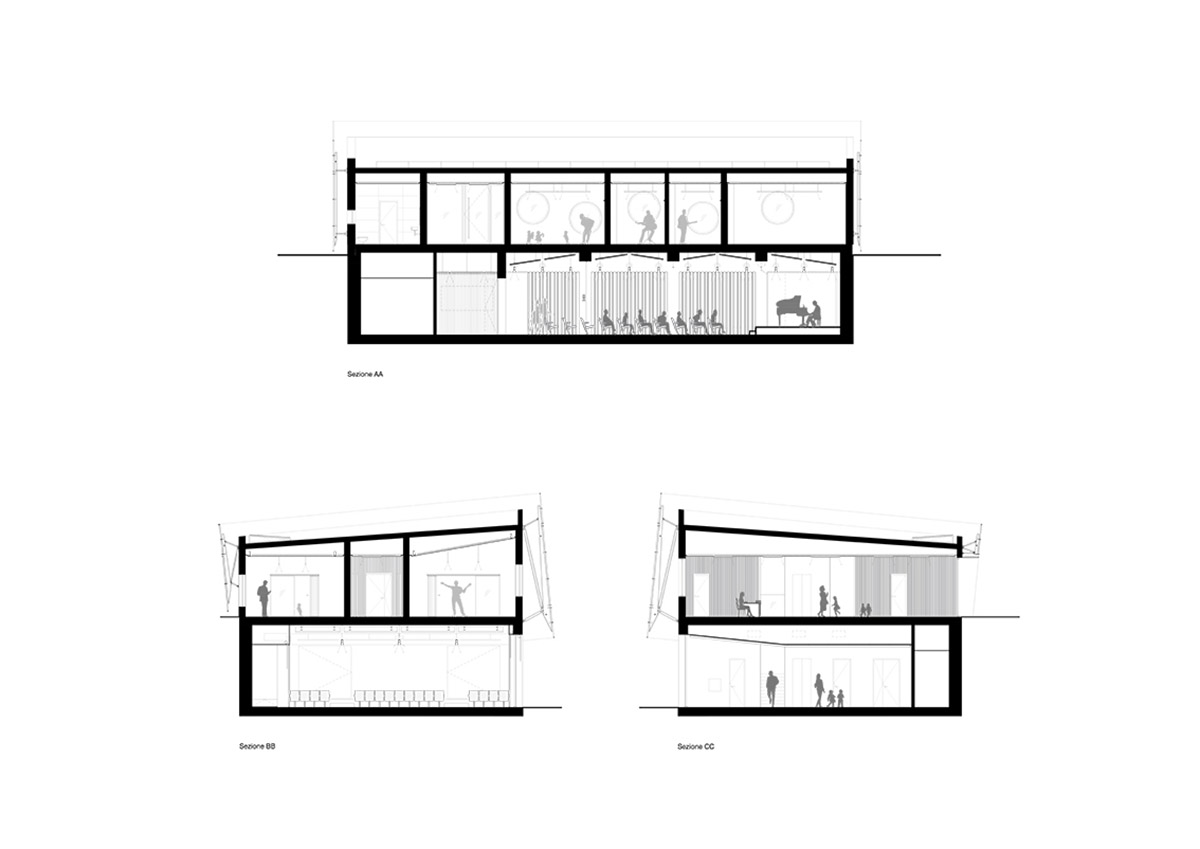

Sections

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

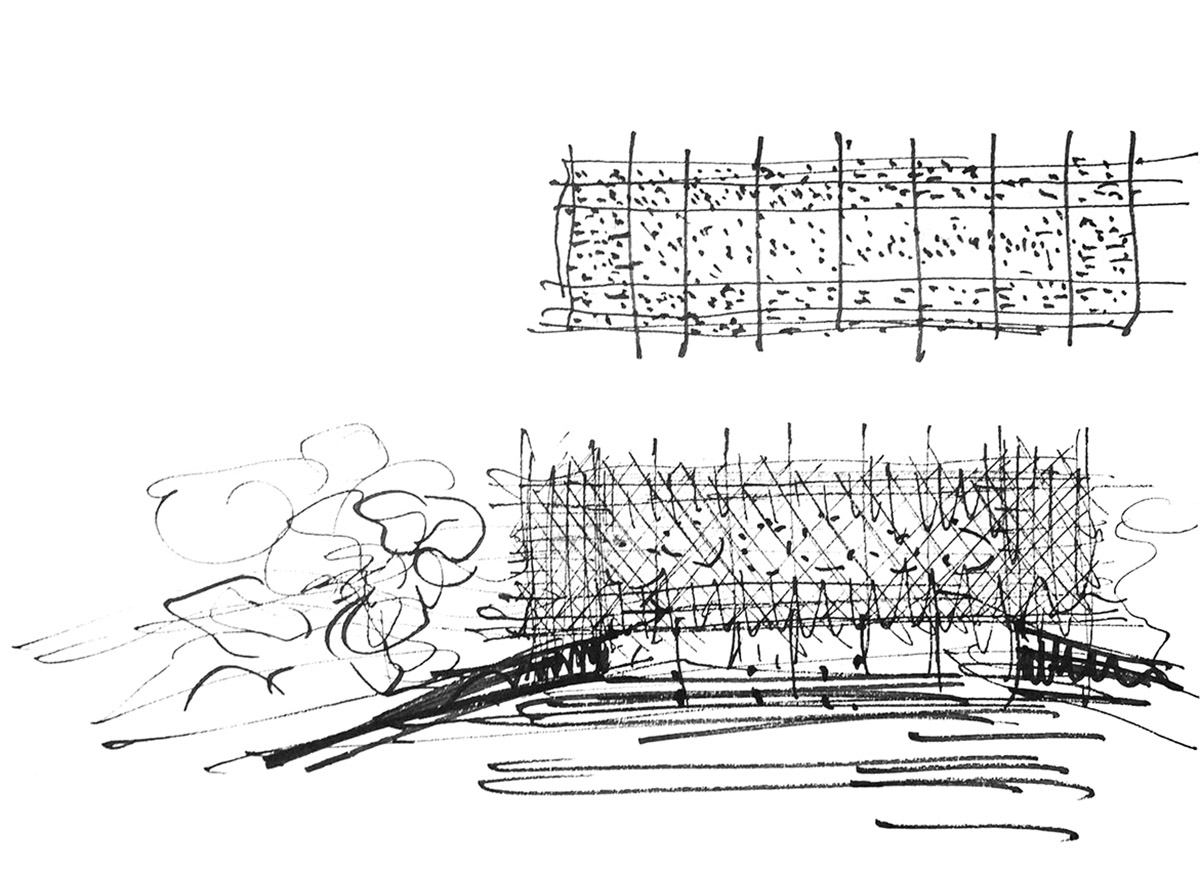

Sketch

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

Sketch

Alvisi Kirimoto and Andrea Bocelli Foundation reveal perforated Camerino Academy of Music in Italy

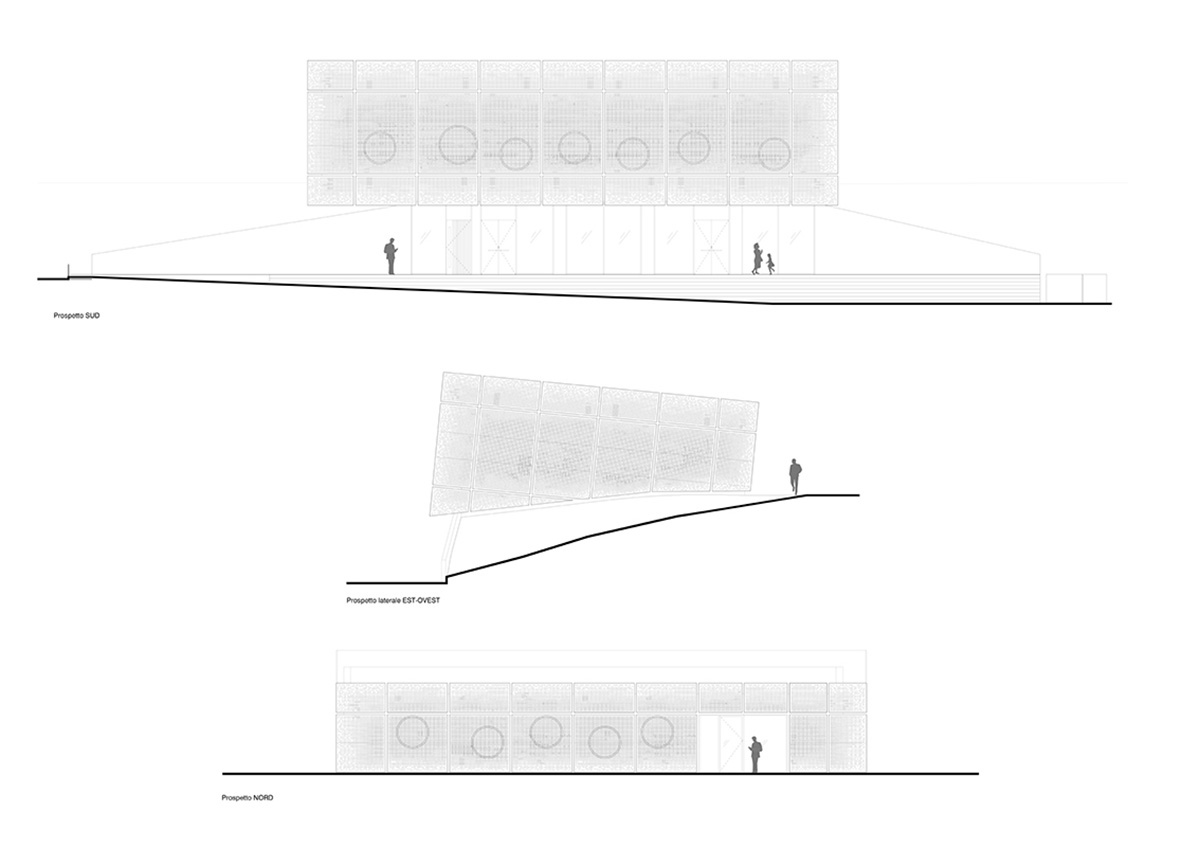

Elevations

Project facts

Project: Camerino Academy of Music
Place: Camerino, Italy
Architecture: Alvisi Kirimoto with Andrea Gianfelici/Harcome
Year: October 2020
Area:
700 sqm Academy of Music
4.650 sqm external areas
Client: Andrea Bocelli Foundation
Construction Manager and Coordinator: Eng. Paolo Bianchi

Contractors:

Building works and wooden structures: Subissati S.r.l.
Installations: Bioedil Vuesse

Consultants
Installations and fire safety design: Serpilli Engineering
Structural design: Subissati S.r.l. - Eng. Paolo Bianchi
Acoustic design: Tan Acoustics - Marco Facondini
Audio Video: Flixarte - Andrea Vaccarini
Construction site safety and management: PSC S.p.a. - Giovanni Perciante

Suppliers:
Carpenters: Chelini
Furniture: Ommag
Seating: Luxy
Lighting: Targetti, Novalux, Vibia
Stoneware floors and cladding: Marazzi
Acoustic diffuser: Vesta Design
Elevator: Savelli Ascensori
Curtains: Bandalux

All images © Moreno Maggi

All drawings © Alvisi Kirimoto
