Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

Japanese architecture firm Tezuka Architects has transformed a traditional kimono store into an office building in Tomioka, Japan. The building features large wooden diagonal grid patterns on façade to both allow rigidity to the building and create a distinctive screen throughout the street. The project has also been shortlisted at this year's World Architecture Festival Awards 2019

Called Tomioka Chamber of Commerce and Industry,  the 502,34-square-metre building is located in the city of Tomioka which is known for its world heritage Tomioka Silk Mill.

The building was previously in use as a traditional shop, but later the Chamber of Commerce purchased "Yoshino Gofuku-ten", a traditional Kimono store to relocate its new building.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

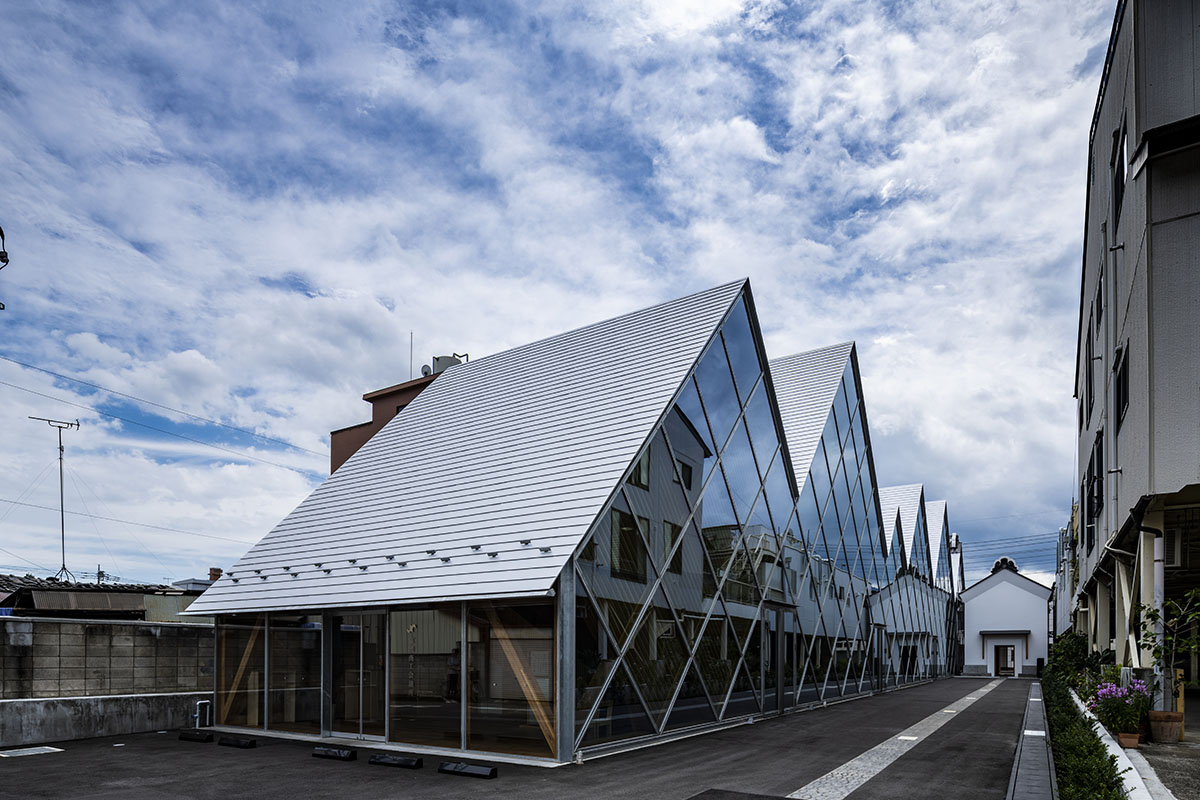

The new building features a linear and zig-zagged form within a dark-brown townscape, but it is marked with its large floor-to-ceiling glass façade and wooden patterns.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

The project began as a rejuvenation of the historical landscape, brought about due to a road expansion that saw the demolition of the old conference hall.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

"It is often difficult to maintain a traditional shop in its original form. Unlike in private houses, it is destined to be redesigned according to daily needs," said Tezuka Architects in its project description.

"Yoshino kimono store was no exception, as it had undergone some haphazard renovations – many timber columns had been cut off and was reinforced by steel framework. It was a wonder how it had remained its from to this day."

"The main house begun to collapse, and soon all it had left was the street facade. It became a hazard and was immediately removed, only its roof tiles were to be preserved. The storehouse, despite losing some pillars, was able to be reinforced and conserved."

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

The two preserved roof was capped with plaster-works traditional to the area; the storehouse with its original, and main house with a reconstruction.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

"Tomioka is not a town that only thrives on the past. We want the future to be expressed through the building," added the firm. This was the request from the president of the Chamber of Commerce upon beginning the construction. Having companies such as IHI with their space rockets, and Nihon Kouden with medical equipment, Tomioka is home to many world leaders in technologies.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

The building is composed of repeating roof ridges, devised in respect to the traditional townscape. The form is also intended to establish the structural system, as sketched out from the initial stage. The intention was to copy the impression of the wooden truss of Tomioka Silk Mill. However, merely duplicating the old structure is uninspiring – it had to represent Tomioka as the city of the future.

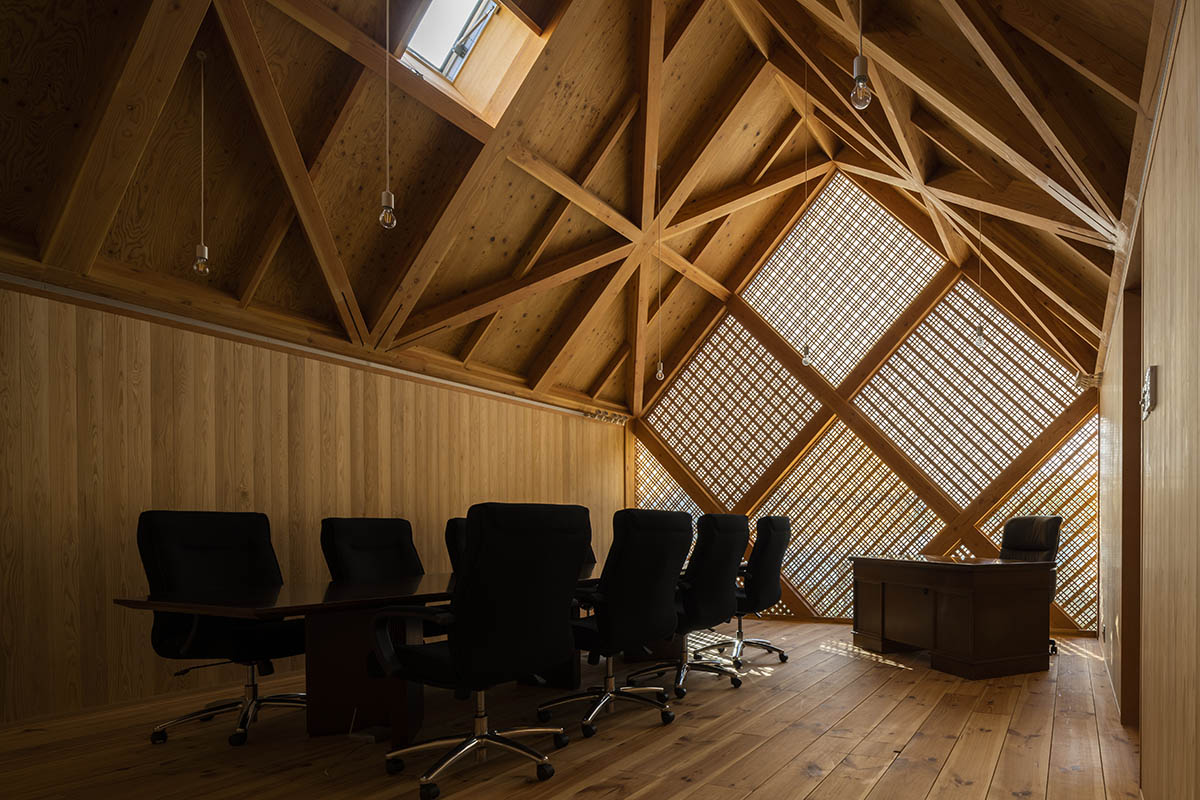

In this building, the diagonal members are not used as truss beams like in the Silk Mill, but rather used as elements that create planer rigidity. The planes meet with each other at their edges, creating a monocoque effect. With angle braces and knee braces supporting the framework, the result is a geometry that clearly shows the dynamics of the force.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

Timber building is both the oldest and the latest building technique. The true value of a timber construction is that it allows continuity of details from structure to fixture. In this way the new Chamber of Commerce is a genuine timber building, made possible by the skills of craftsmen.

"A real wooden building does not get old; it matures, gains character, and looks better with time," according to the architects. The architects hope this building will become a landmark of Tomioka, alongside the Silk Mill, in the coming centuries.

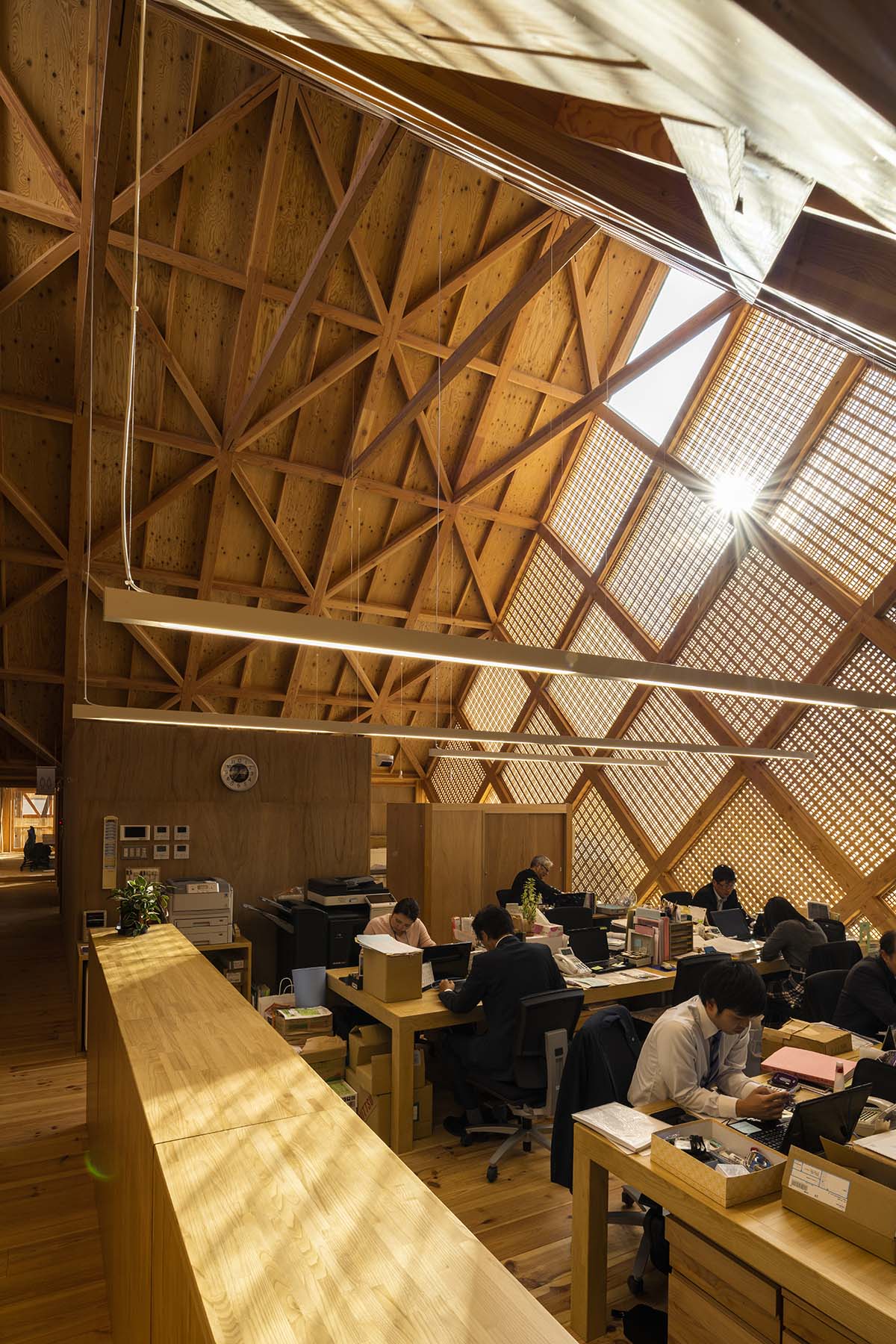

A diagonal grid pattern appears repeatedly from the structure to the awning screen. Even the book shelves are composed of the same pattern. Initially the pattern was derived from the building form of the roof ridges. However, its been since pointed out that it resembles the lattice that is used in silkworm farming. The pattern is also similar to "Namako wall", a design with white clay joints that are widely used for fireproofing storehouses, including that of Yoshino kimono store.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

A path cuts through the long and narrow site. It is a historical road connecting Tomioka Silk Mill and the City Hall. This space allows light into the building, and provides a sheltered public space, used for events such as the traditional town festivals. The storehouse located at the end of the road has been restored and designated as a gate to the historical district. The tile buried at the central axis of the road is the tiles recovered from the old Yoshino kimono store.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

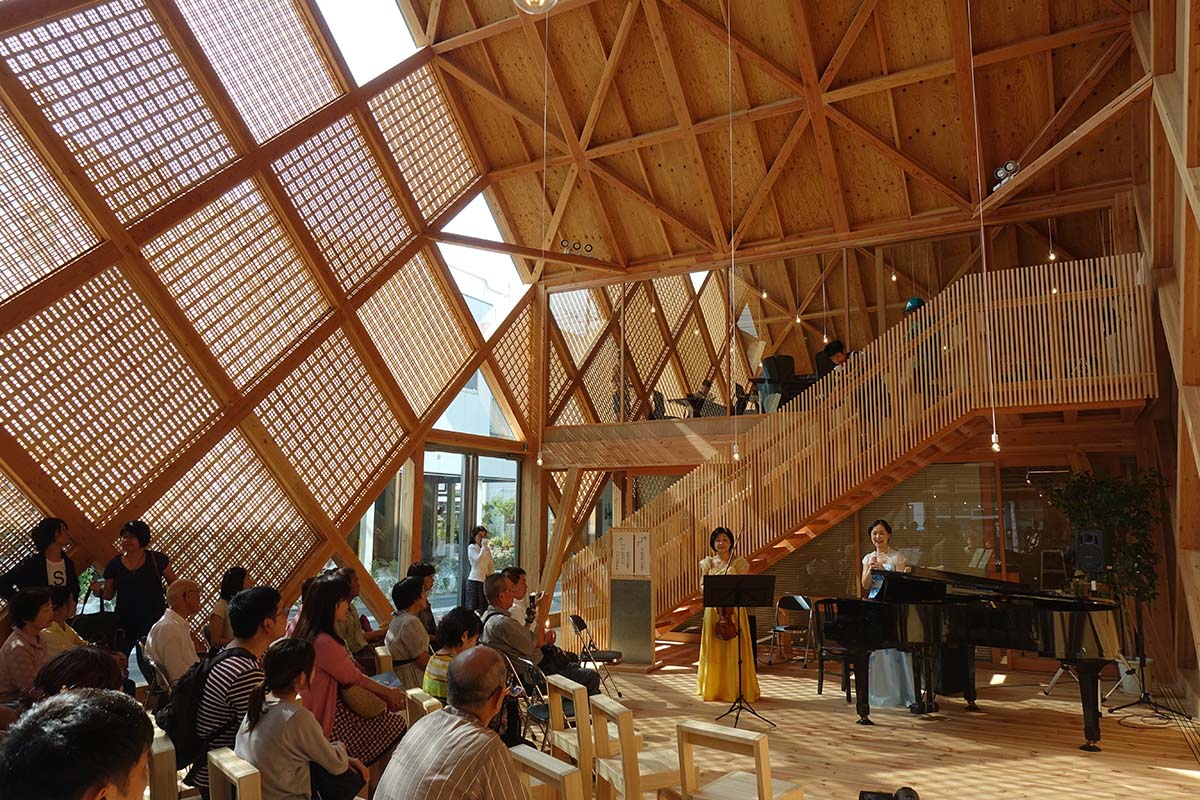

Along the street front is the Main Hall. At the back sits a Grand Piano which has been donated by the family of Yoshino Kimono store. The hall does not have any fixed seating, nor any devices that controls the acoustic. What it has instead is a brilliant accessibility from the street, and versatility for the public.

From an orchestra concert to a practice space for local festive dance, the hall can provide a backdrop for every aspect of public life in the city. This is where people gather, a new heart for the local community.

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

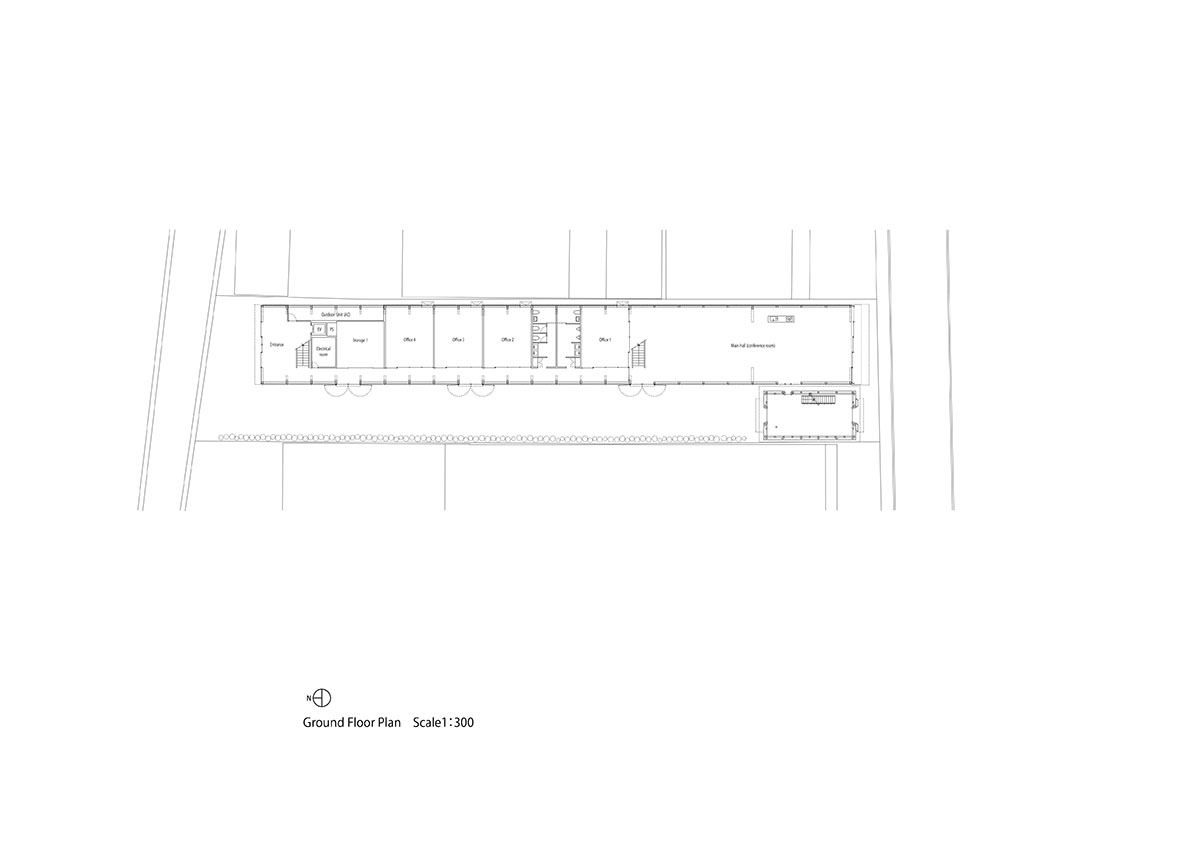

Ground floor plan

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

First floor plan

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

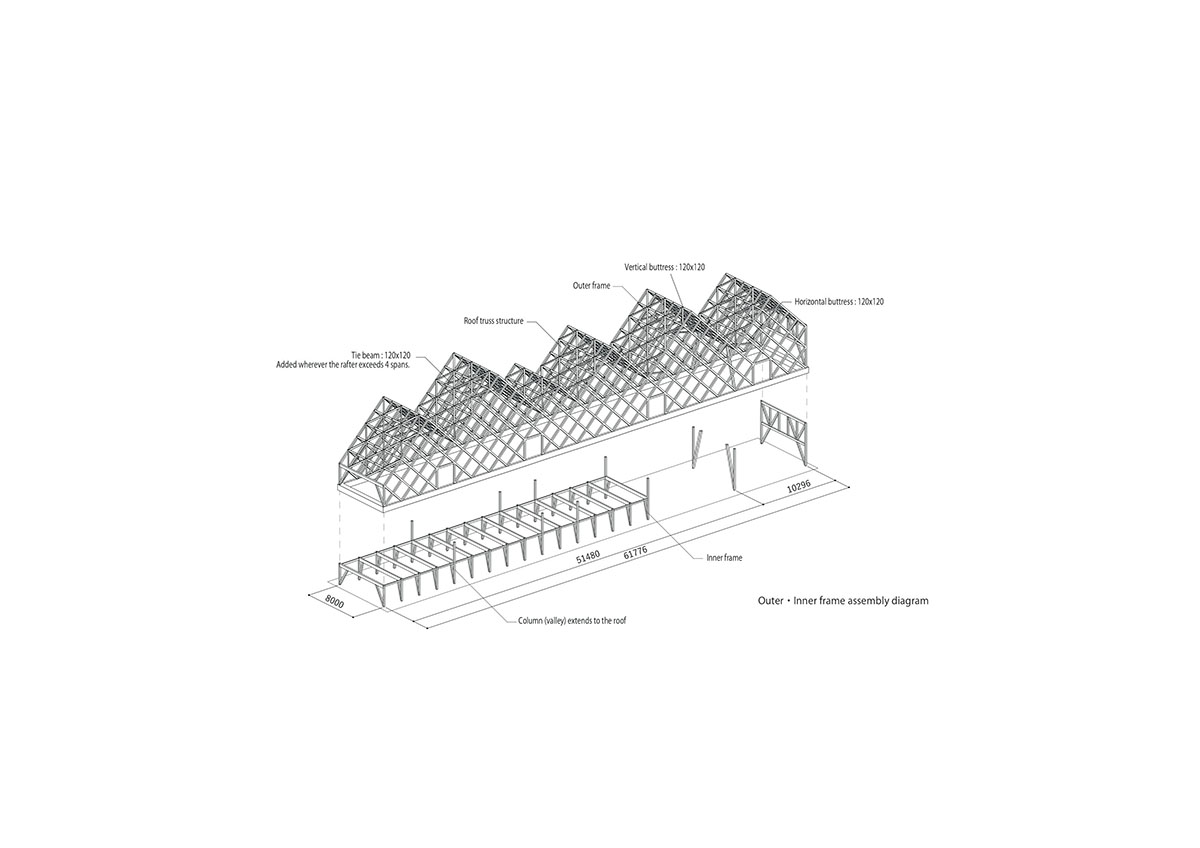

Inner & Outer frame diagram-images

Tezuka Architects' zig zag office building creates lace-like façade with wooden diagonal grids

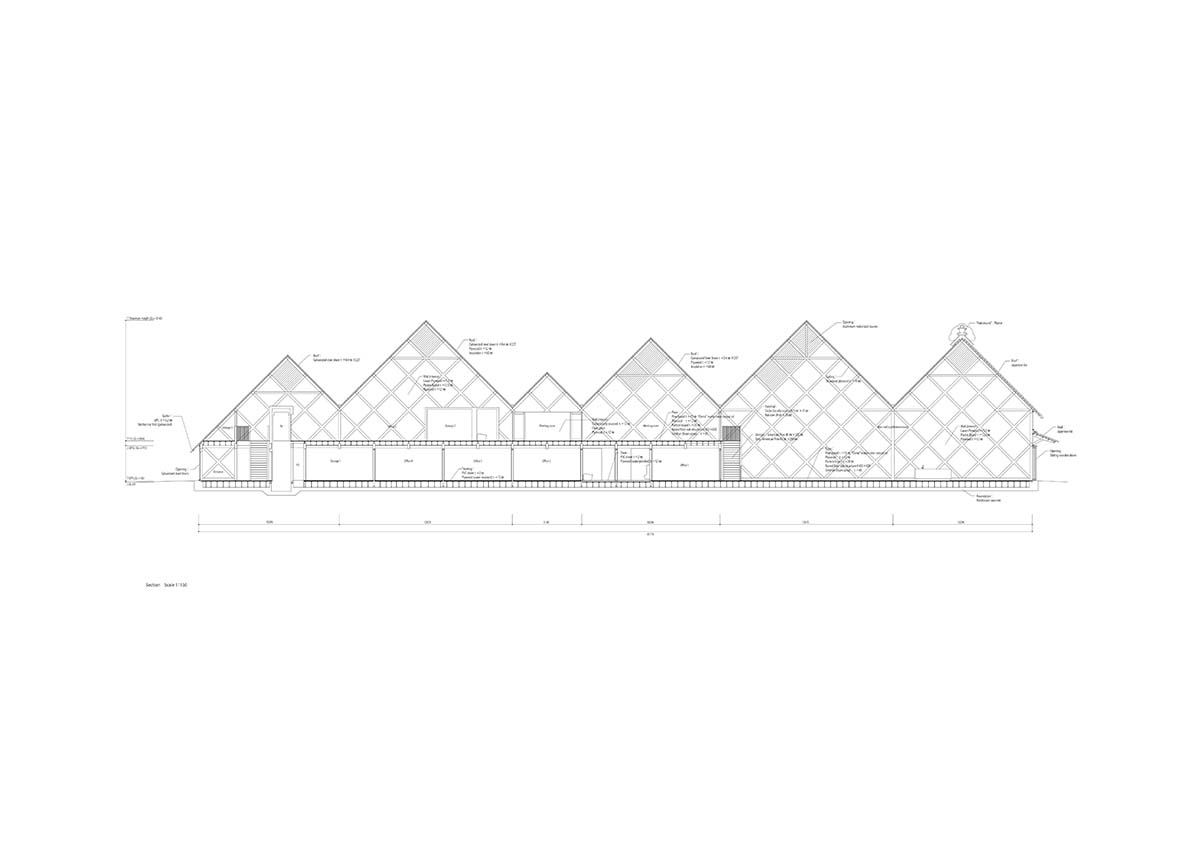

Section

Project facts

Principal Use: Office building

Location: Gunma Tomioka City

Building area: 502.34 m2 (Sleeve storage: 44.95 m2)

Total floor area: 801.64 m2 (sleeve storage: 86.64 m2)

Site area: 1067.24 m2 (including sleeve storage: 83.25 m2)

Max height: 12060mm

Elevated height: 5,473 mm

Floor height: 2,964 mm

Ceiling height: 2,615 mm

Main span: 1,600 mm ×1, 287 mm

Structure: wooden

Architects: Tezuka architects / Takaharu Tezuka + Yui Tezuka + Keiji Yabe

Structure: Ohno JAPAN / Hirofumi Ohno + Ryuhei Fujita + Takehiro Ebisawa

Lighting Design: Bonbori Lighting Architects & Associates, Inc

Design period: January 2016 – May 2017

Construction period: June 2017 – May 2018

All images © Katsuhisa Kida/FOTOTECA

> via Tezuka Architects
