THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

United States Architecture News - Jun 3, 2019 - 04:24   3452 views

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

Architect Marc Fornes' studio THEVERYMANY has built a cloud-like pavilion, hovering in the plaza of the Valerie C. Woodard Center in Charlotte, North Carolina.

Called Pillars of Dreams, the new structure is one of Marc Fornes' prototypical structures that he developed so far. It is a landmark pavilion built from a lightweight structure - its open volumes appear to be filled with air, but they are held up by a continuous structural skin in ultra-thin aluminum.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

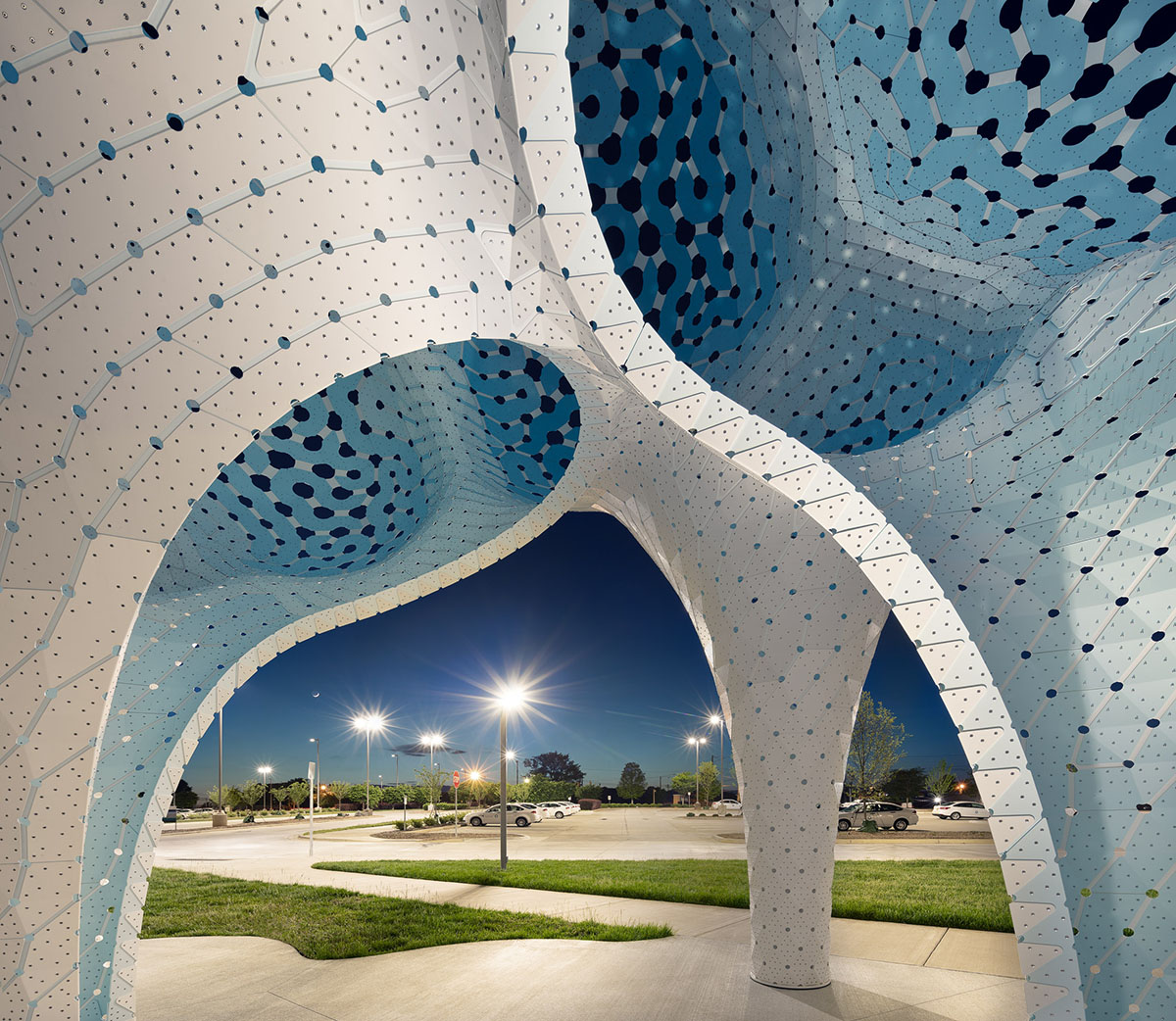

A labyrinth of unique parts unfurl across the surface in two layers, which produce openings over the broader expanses of the canopy and contract where the double-curvature meets in seams or resolves into nine hollow columns.

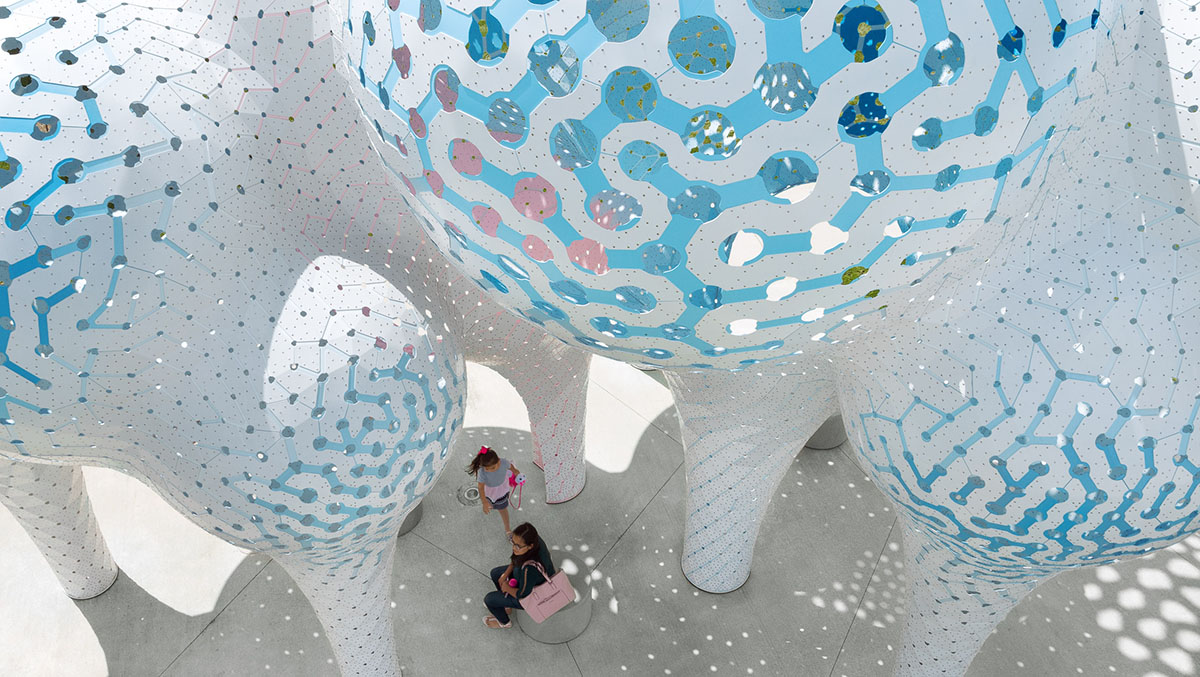

The complex skin generates a dynamic atmosphere in the space below. Graphic shadows and projected light patterns lend magic to a casual stroll along its length, a game of tag around staggered legs, or a restful moment seated under the canopy.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

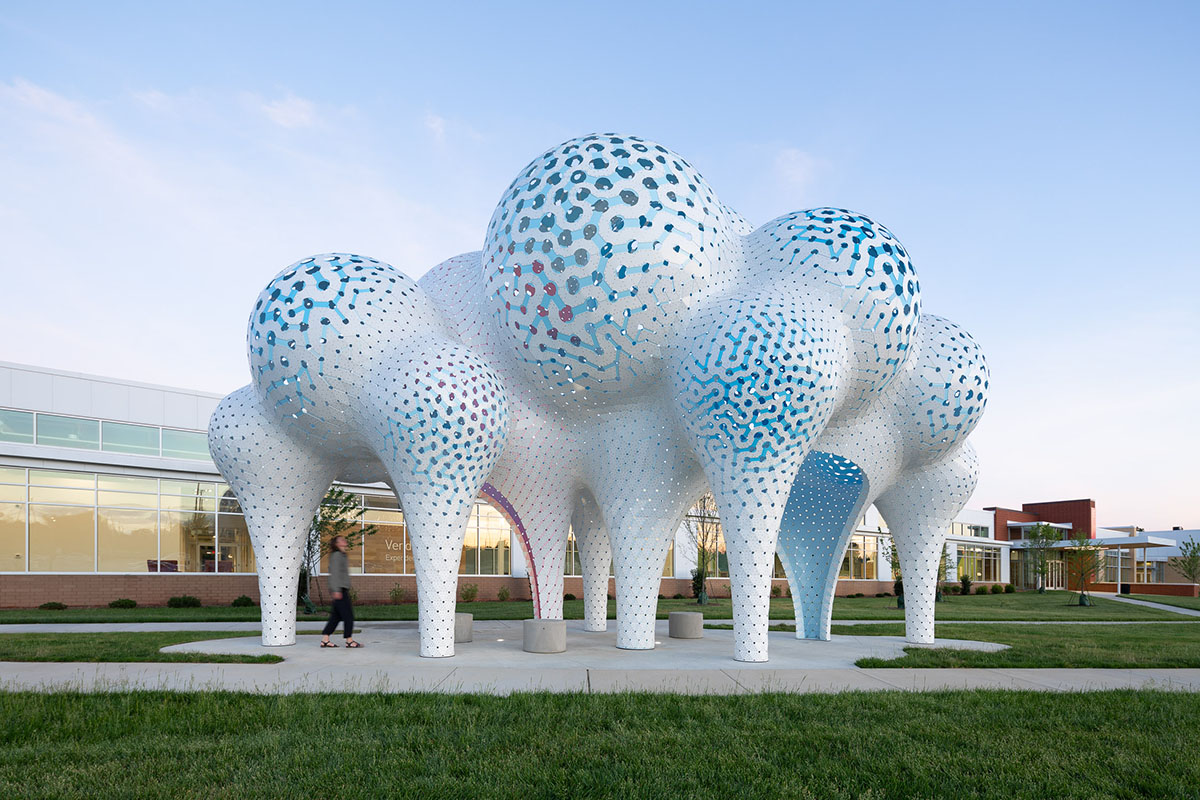

"Pillars of Dreams is an icon to be experienced. The cloud-like pavilion is anchored to the ground on nine legs, which are part of the continuous aluminum surface that makes up the double-curving canopy overhead," said THEVERYMANY in a project description.

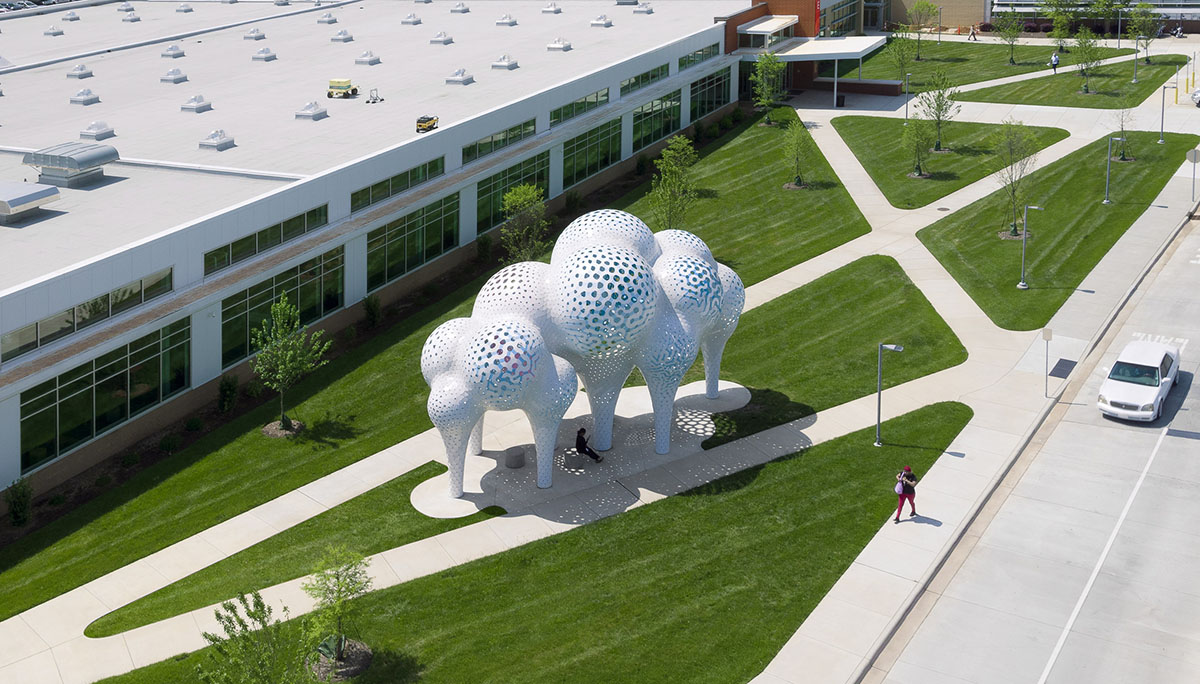

"These open pillars resolve into a field of clustered seating, establishing a public agora for visitors and employees. Along the path from parking to the main entrance, the pavilion accommodates friendly interaction as well as quiet moments for reflection."

"The airy structure offers relief from the sun but also casts dynamic light through its porous surface. The atmosphere within, full of color and dappled light, inspires curiosity, collegiality, and a renewed spirit of place."

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

Building on the aggregation of spheres across the studio’s prototypical structures (Double Agent White, Situation Room, a pop-up for Louis Vuitton), Pillars of Dreams thrusts these volumes into the air. At 26 feet overhead, they appear to float like balloons. But it’s not helium that keeps them afloat, nor any primary or secondary structure.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

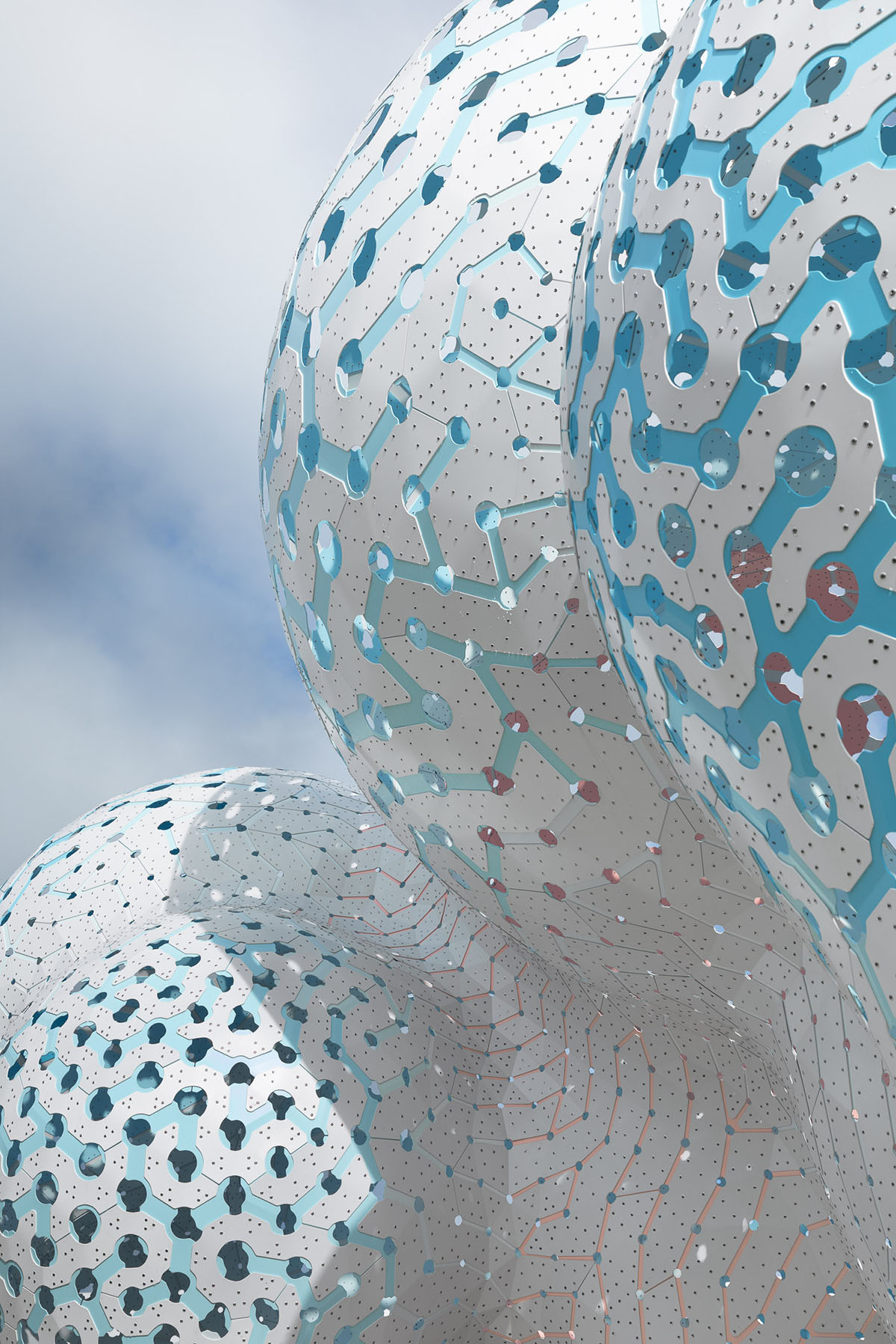

The skin that stretches over the balloon-like aggregate is also self-supporting. The intricate patterning of the two-layer, 3mm surface negotiates transitions between the large areas of double curvature and the intensive, or constrained curvature of the tube-like columns.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

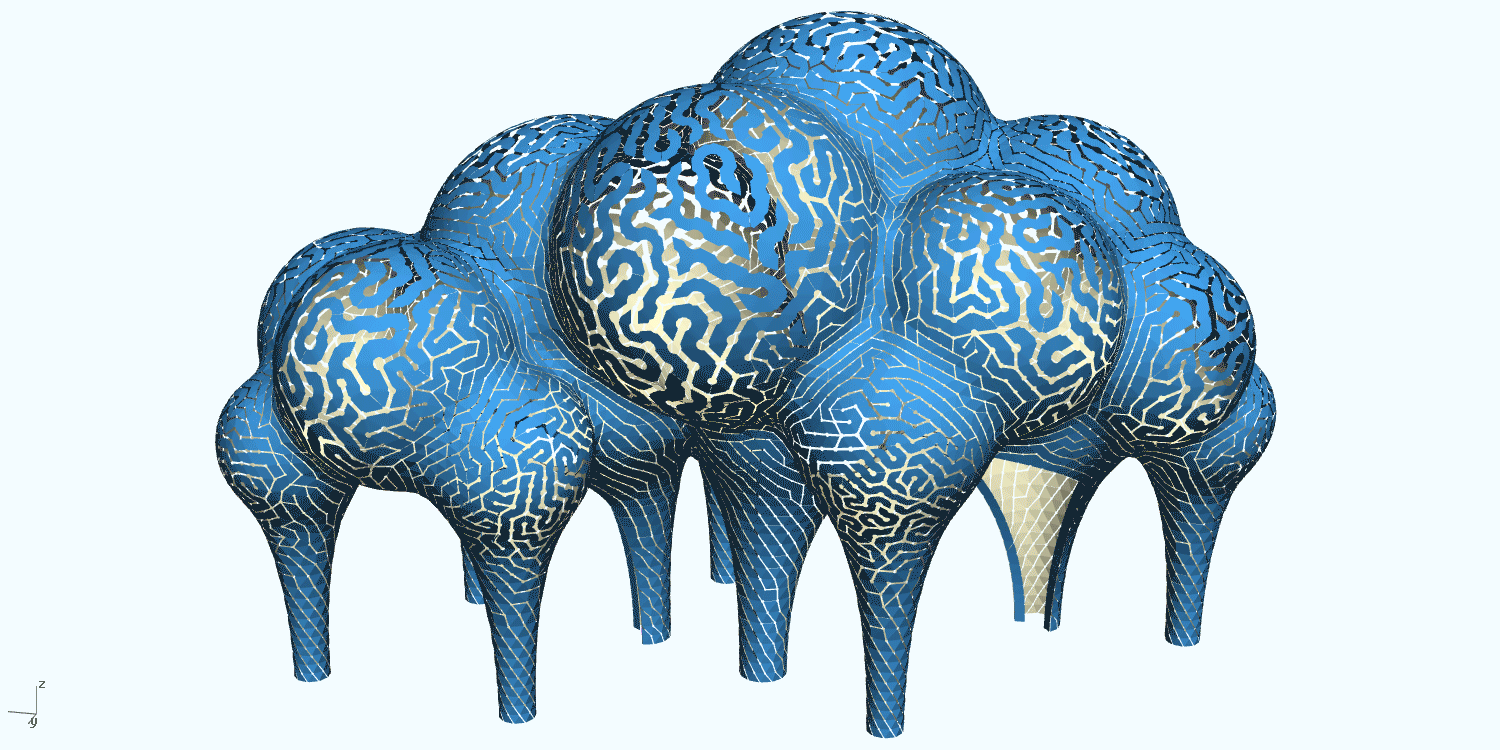

Labyrinthine parts in two colorways comprise the two faces of the ultra-thin skin. Segmentation is the process of decomposing a three-dimensional mesh into linear or non-linear stripes.

Produced by parallel agent-based search protocol, the non-linear stripes are the result of the indecisive behavior of the agents, which change their attitudes in tight turns. As they come together at seams and make their way to the ground, they find alignment as linear stripes.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

Across the ballooning expanses, they express the recursive quality of the computational description. Bifurcations and splits in the pattern tighten and spread to produce porosity.

Like bubblegum blown just to the point of popping, the skin becomes thinner and more open across the wider expanses of the spheres, allowing light to come through. Where the volumes merge, the stripes between them become more densely packed, lending to the structural performance.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

The white exterior face shrouds the saturated coloration on the interior. Openings in the veil suggest the the energy inside, where cross-laminated stripes in a set of bright hues peek out from the interior. From a distance, the structure strikes a soft tone, but the viewer can still register the pulsing glow of the gradient within.

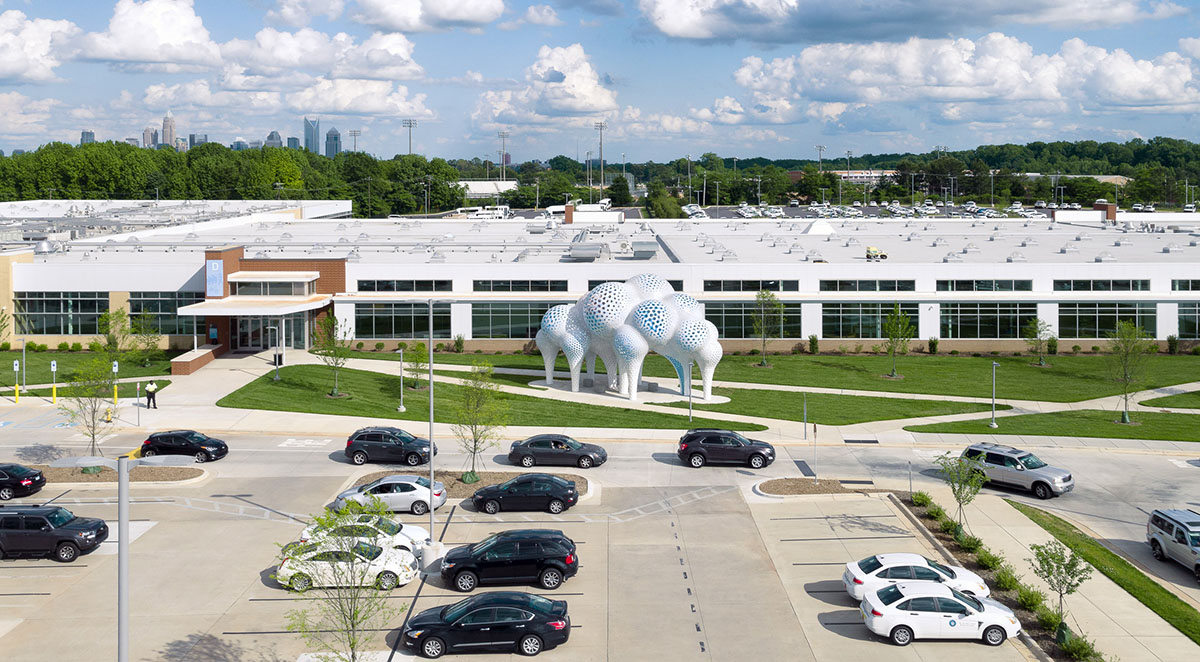

It catches the eye from the street, but must be approached to be understood. The intensity of color grows as one nears the pavilion and finally envelopes the viewer upon entry—curiosity rewarded.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

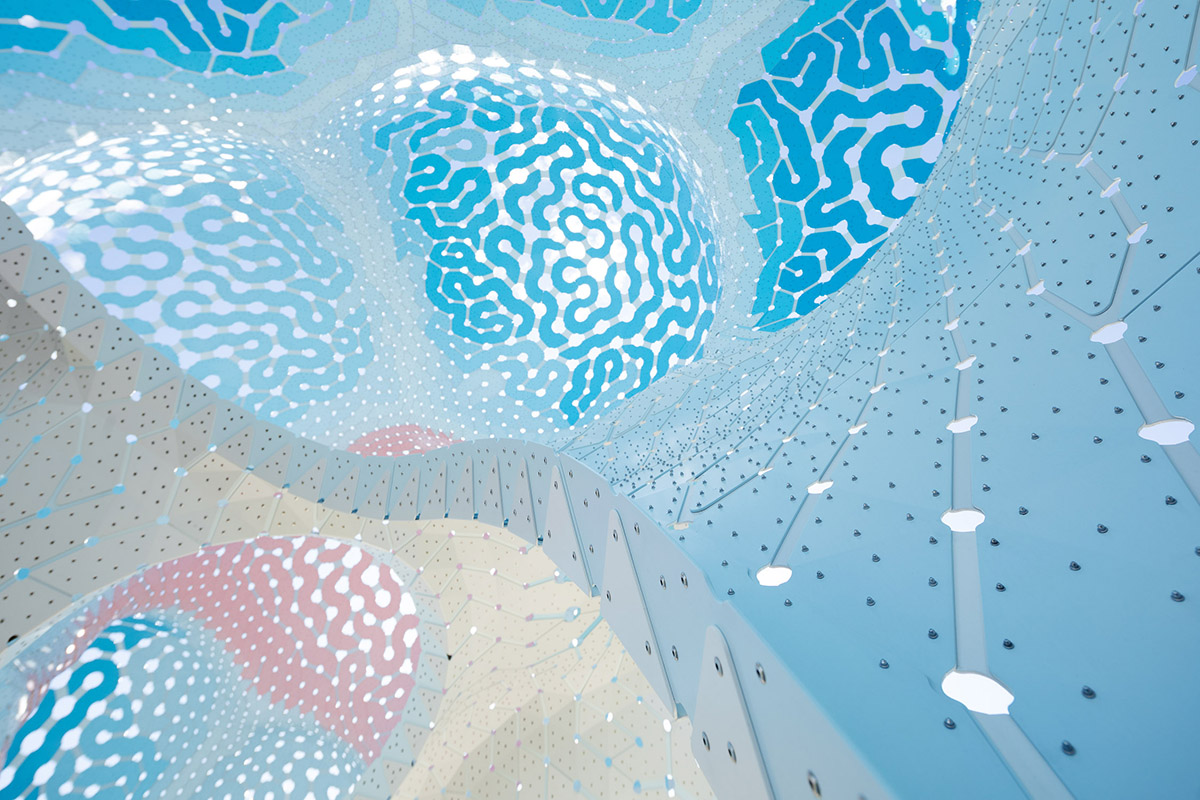

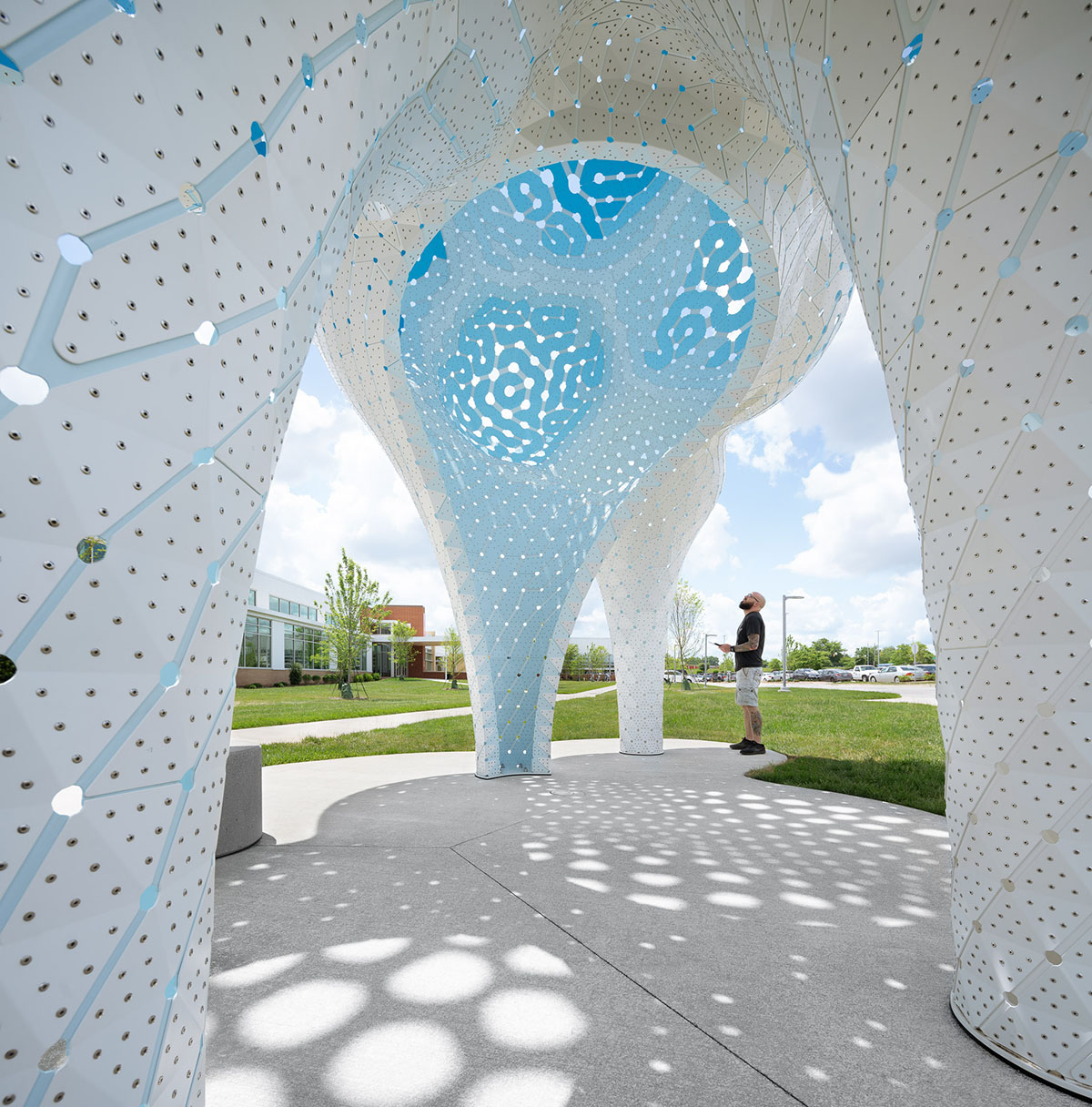

Inside, color opens up not just overheard, but at eye level, as pillars peel open to embrace the activity on the interior. A vertical gradient follows the height of the pillar and keeps the eye tracing the structure.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

Seating is grouped under openings in the skin, where the “bubbles” appear the most thinned out and over-inflated. Under these curious vaults, where color meets light, the employees and residents of Mecklenburg County have a place to gather, to recharge, to revel, and, perhaps, to daydream.

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

THEVERYMANY designed a cloud-like pavilion with dreamy interior in Charlotte

Project facts

Dimensions: 26.5’ H x 23’ W x 43’ D

Material: two layers of 3mm aluminum

Linear Cut Distance: 11,000 meters

Number of Parts: 3,564

Number of Rivets: 54,000

Design/Build: by MARC FORNES / THEVERYMANY

Pillars of Dreams is an original work commissioned by Mecklenburg County, North Carolina, the Charlotte/Mecklenburg Public Art Commission and Arts and Science Council - Charlotte/Mecklenburg.

All images © NAARO

All graphics © THEVERYMANY
